elasticsearch-head安装及详细配置

yangkei 2023-08-16 原文

一,介绍

elasticsearch head 是一款开源的可视化的elasticsearch可视化工具,使用相当方便和广泛。

这个插件安装比较简单,网上已经有写得比较好的文章了,例如:Elasticsearch-head可视化工具安装及实例使用介绍_斌哥谈编程的博客-CSDN博客文章目录一、环境准备1.1 下载1.2 运行二、查看Elasticsearch-head界面2.1 服务端安装及配置2.2 配置跨域访问2.3 查看界面2.3.1 基本概念2.3.2 数据浏览2.3.3 基本查询2.3.4 复合查询一、环境准备由于ES官方并没有为ES提供界面管理工具,仅仅是提供了后台的服务。elasticsearch-head是一个为ES开发的一个页面客户端工具,其源码托管于GitHub,地址为:https://github.com/mobz/elasticsearch-head提https://blog.csdn.net/houpeibin2012/article/details/108482148

安装方式有4种,我也选择的是源码安装。

源码安装,通过npm run start启动
通过docker安装
通过chrome插件安装
通过ES的plugin方式安装

其实docker安装应该更好用,有兴趣的可以参考

https://jingyan.baidu.com/article/c1465413d7bd7a0bfdfc4c50.htmlhttps://jingyan.baidu.com/article/c1465413d7bd7a0bfdfc4c50.html

环境说明:

本文记录博主自己的安装步骤,以备今后查验。

操作系统版本:Red Hat Enterprise Linux release 8.2 (Ootpa)

二,安装步骤:

2.1,nodejs及npm安装

head是一个Node.js项目,所以需要先安装Node.js才可以运行head。安装了Node.js后,安装需要用到的npm命令就自带安装上了。

注意从这里开始要使用root用户。下载Nodejs:

Download | Node.jsNode.js® is a JavaScript runtime built on Chrome's V8 JavaScript engine.https://nodejs.org/en/download/

当前最新的版本是16.17.0

如果操作系统版本低的话可以选择低一些的版本,例如14.20.0

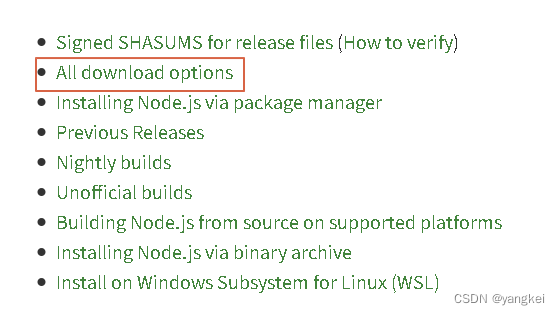

下滑到下载页面的底部:



所有版本的下载列表:Index of /dist/https://nodejs.org/dist/

上传下载的安装包,然后解压:

#xz -dk node-v16.17.0-linux-x64.tar.xz

#tar -xvf node-v16.17.0-linux-x64.tar

执行node命令 查看版本:

 [root@goya1 bin]# ./node -v
v16.17.0

解压文件的 bin 目录底下包含了 node、npm 等命令,我们可以使用 ln 命令来设置软连接:
ln -s /app/nodejs/bin/npm /usr/local/bin/
ln -s /app/nodejs/bin/node /usr/local/bin/
设置npm镜像为国内的
npm config set registry http://registry.npm.taobao.org

可以通过输入npm命令来验证是否生效。

 2.2,elasticsearch-head安装

GitHub - mobz/elasticsearch-head: A web front end for an elastic search clusterA web front end for an elastic search cluster. Contribute to mobz/elasticsearch-head development by creating an account on GitHub.https://github.com/mobz/elasticsearch-head

通过上面的连接下载安装包,然后将安装包上传到服务器。解压到目录/app/head-master

进入/app/head-master目录,执行npm install命令。

有错误产生,Nodejs版本过高。重新下载降级版本node-v14.20.0-linux-x64.tar来安装,成功通过。

也有另外一种解决办法就是安装phantomjs-prebuilt的2.1.14版本。读者可以自行测试。

运行elasticsearch-head:



使用elasticsearch-head:(说明:这里我连接是由3台ES节点组成的ES集群,且ES启用了x-pack,也就是需要用户名和密码访问)

这里其实无法连接到elasticsearch, 还需要解决跨域问题:

2.3,配置跨域访问:
由于前后端分离开发,所以会存在跨域问题,需要在服务端做CORS的配置,如下:
vim elasticsearch.yml
http.cors.enabled: true
http.cors.allow-origin: "*"
http.cors.allow-credentials: true
http.cors.allow-headers: Content-Type,Accept,Authorization,x-requested-with
#http.cors.allow-headers: "*"
配置完,后重启服务端程序。
cd bin
./elasticsearch 或 ./elasticsearch -d #后台启动

错误处理1:Access to XMLHttpRequest at xxx has been blocked by CORS policy: Request header field content-type is not allowed by Access-Control-Allow-Headers in preflight response.

同源策略禁止读取位于 http://localhost:9200/_cluster/health 的远程资源。解决方法:在elasticsearch.yml中增配置内容如下:
http.cors.allow-headers: Content-Type,Accept,Authorization, x-requested-with

或者http.cors.allow-headers: "*"

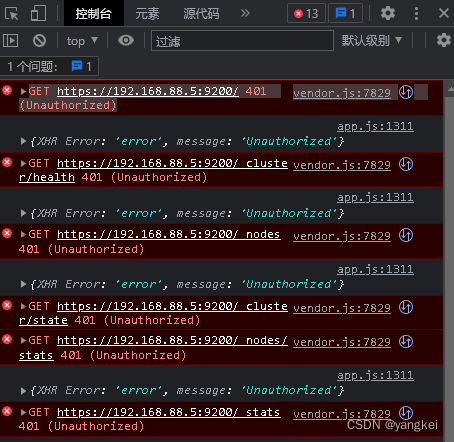

错误2:vendor.js: GET https://:9200/ 401 (Unauthorized)。ES启用了X-pack,但是在elasticsearch-head 连接时提示401无权限访问。


解决方法1(不推荐):修改ES配置文件,关闭x-pack功能,在elasticsearch.yml文件,添加如下一行内容:xpack.security.enabled: false

解决方法2:从head-master端解决。

2.4,配置head master 到 elasticsearch的加密访问。

如何从head-master这边解决是作者花了两天时间都没有办法解决的问题,感谢万能的网络,最后找到了解决办法。思路就是带密码访问加密的ES。在输入elasticsearch-head访问地址时输入auth_user和auth_password两个变量值,如下图所示:

http://192.168.88.5:9100/?base_uri=https://192.168.88.5:9200&auth_user=elastic&auth_password=123456

三,其他技巧

3.1,设置master head需要用户名和密码登录。保障elasticsearch-head的访问安全。

参考:elasticsearch-head设置登录用户和密码_wangan094的博客-CSDN博客_es head 设置密码将elasticsearch-head-master/index.html路径下的index.html文件替换为如下代码,userName和userPassword自定义<!DOCTYPE html> <html><head><meta charset="UTF-8"><title>elasticsearch-head&...https://blog.csdn.net/DH2442897094/article/details/105200039
