使用docker搭建es集群

一、安装es

1.1 拉取es镜像

docker pull elasticsearch:7.9.3（重点7.x开始不需要手动下载x-pack）

1.2 配置es并启动

mkdir -p data/es/config
cd data/es
mkdir -p node1/data
chmod 777 data
mkdir node2/data
chmod 777 data
mkdir node3/data
chmod 777 data

cd config
vim es1.yml

配置

cluster.name: elasticsearch-cluster
node.name: es1
network.bind_host: 0.0.0.0
network.publish_host: (此处填ip)
http.port: 9200
transport.tcp.port: 9300
http.cors.enabled: true
http.cors.allow-origin: "*"
node.master: true
node.data: true
discovery.zen.ping.unicast.hosts: ["ip:9300","ip:9301","ip:9302"]
discovery.zen.minimum_master_nodes: 2
cluster.initial_master_nodes: ["es1"]
xpack.security.enabled: true
xpack.security.authc.accept_default_password: true
xpack.security.transport.ssl.enabled: true
#xpack.security.transport.ssl.verification_mode: certificate
#xpack.security.transport.ssl.keystore.path: /usr/share/elasticsearch/config/elastic-certificates.p12
#xpack.security.transport.ssl.truststore.path: /usr/share/elasticsearch/config/elastic-certificates.p12
http.cors.allow-headers: Authorization,X-Requested-With,Content-Length,Content-Type

重复动作生成es2.yml、es3.yml
调整jvm限制

vim /etc/sysctl.conf
vm.max_map_count=262144
启用配置
sysctl -p

启动es
docker run -e ES_JAVA_OPTS="-Xms256m -Xmx256m" -d -p 9200:9200 -p 9300:9300 -v /data/es/config/es1.yml:/usr/share/elasticsearch/config/elasticsearch.yml -v /data/es/node1/data:/usr/share/elasticsearch/data --name ES01 elasticsearch:7.9.3

docker run -e ES_JAVA_OPTS="-Xms256m -Xmx256m" -d -p 9201:9201 -p 9301:9301 -v /data/es/config/es2.yml:/usr/share/elasticsearch/config/elasticsearch.yml -v /data/es/node1/data:/usr/share/elasticsearch/data --name ES02 elasticsearch:7.9.3

docker run -e ES_JAVA_OPTS="-Xms256m -Xmx256m" -d -p 9202:9202-p 9302:9302 -v /data/es/config/es3.yml:/usr/share/elasticsearch/config/elasticsearch.yml -v /data/es/node1/data:/usr/share/elasticsearch/data --name ES03 elasticsearch:7.9.3

1.3开启端口

firewall-cmd --add-port=9300/tcp
firewall-cmd --add-port=9301/tcp
firewall-cmd --add-port=9302/tcp

1.4验证

http://ip:9200/_cat/health?v

状态为green为健康

二、安装ik分词器

docker exec -it ES01 bash
elasticsearch-plugin install https://github.com/medcl/elasticsearch-analysis-ik/releases/download/v7.9.3/elasticsearch-analysis-ik-7.9.3.zip

重复此动作

es默认分词器对中文分词非常不友好，会把一句话拆成每一个字（想要了解可以去查下资料）

三、安装elasticsearch-head:5

docker pull mobz/elasticsearch-head:5
docker run -d -p 9100:9100 --name head5  mobz/elasticsearch-head:5

访问页面
http://ip:9100/

四、安装Kibana

docker pull kibana:7.9.3
cd /data
mkdir -p kibana/config
cd kibana/config
vim kibana.yml

server.name: kibana
server.host: "0"
elasticsearch.hosts: [ "http://ip:9200","http://ip:9201","http://ip:9202" ]
xpack.monitoring.ui.container.elasticsearch.enabled: true
#elasticsearch.username: elastic
#elasticsearch.password: "123456"
#xpack.security.enabled: true
xpack.security.encryptionKey: "c77effba756146d382ebc79b279fd694"
i18n.locale: "zh-CN"

启动
docker run -d --name=kibana --restart=always -p 5601:5601 -v /data/kibana/config/kibana.yml:/usr/share/kibana/config/kibana.yml kibana:7.9.3

五、开启es安全认证

生成证书

docker exec -it ES01 bash
bin/elasticsearch-certutil ca

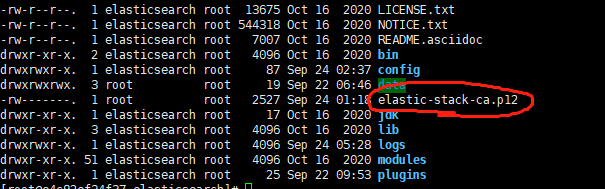

执行完此操作后会生成（这里会配置一个密码，执行下一步操作会用）

执行此命令的设置密码不用设，直接回车

bin/elasticsearch-certutil cert --ca elastic-stack-ca.p12

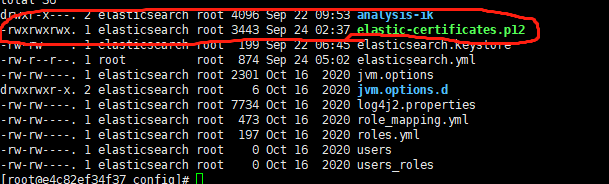

将此处生成的文件放到config下

并给他配置权限（执行两次）

chmod 777 elastic-certificates.p12

分配用户组

chown elasticsearch elastic-certificates.p12

更改es配置

vim es1.yml

将上面注释的配置打开

xpack.security.transport.ssl.verification_mode: certificate
xpack.security.transport.ssl.keystore.path: /usr/share/elasticsearch/config/elastic-certificates.p12
xpack.security.transport.ssl.truststore.path: /usr/share/elasticsearch/config/elastic-certificates.p12

全部修改完了后重启es
重启es后要生成密码，进入es容器

docker exec -it ES01 bash

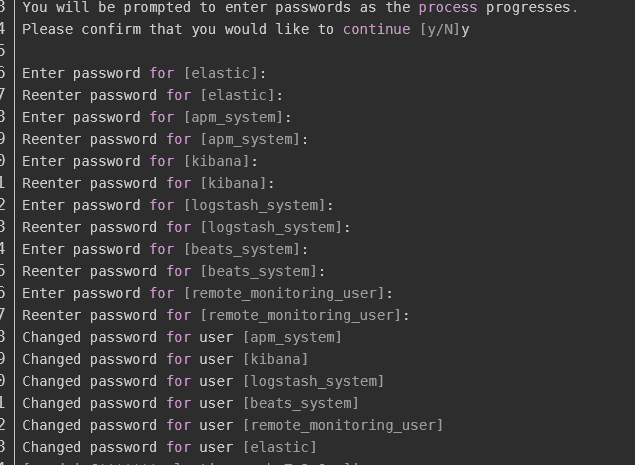

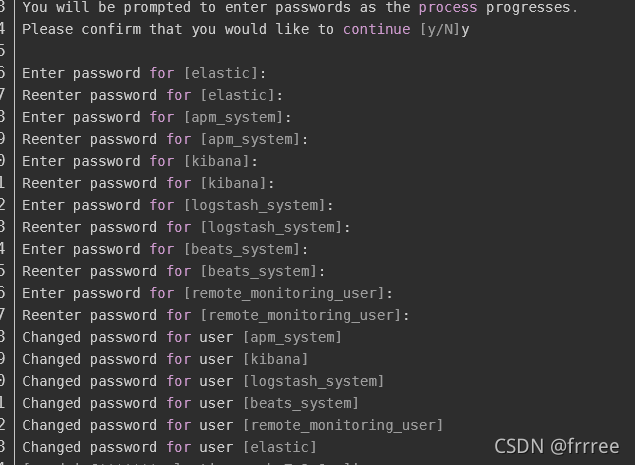

bin/elasticsearch-setup-passwords interactive

这里会让配置好多密码，挨个配置，配置成功后修改kibana配置
这里我已经配置过了不呢重复执行，从网上找了个图片

打开上面kibana.yml的注释

elasticsearch.username: elastic
elasticsearch.password: "123456"
xpack.security.enabled: true

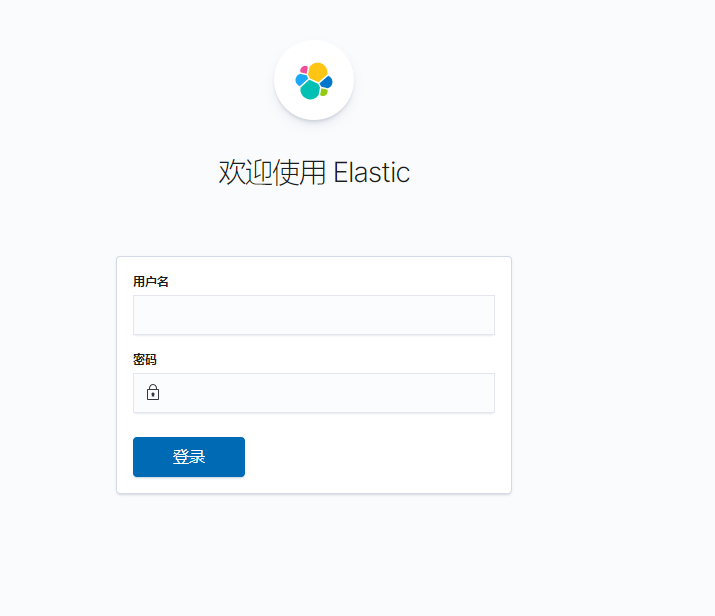

重启kibana,再访问

六、安装metricbeat

docker pull docker.elastic.co/beats/metricbeat:7.9.3
cd /data
mkdir -p metricbeat/config
cd metricbeat/config
vim metricbeat.yml

配置信息

metricbeat.modules:
- module: system
  period: 10s
  metricsets:
    - cpu
    - load
    - memory
    - network
    - process
    - process_summary
    #- core
    #- diskio
    #- socket
  processes: ['.*']
  process.include_top_n:
    by_cpu: 5      # include top 5 processes by CPU
    by_memory: 5   # include top 5 processes by memory
- module: system
  period: 1m
  metricsets:
    - filesystem
    - fsstat
  processors:
  - drop_event.when.regexp:
     system.filesystem.mount_point: '^/(sys|cgroup|proc|dev|etc|host|lib)($|/)'
- module: system
  period: 15m
  metricsets:
    - uptime

# 直接发送elasticsearch
output.elasticsearch:
  hosts: ["ip:9200","ip:9201","ip:9202"]
  username: "elastic"
  password: "1234556"

# 要加载仪表板，可以在metricbeat设置中启用仪表板加载。当仪表板加载被启用时，Metricbeat使用Kibana API来加载样本仪表板。只有当Metricbeat启动时，才会尝试仪表板加载。
# 设置kibana服务地址
setup.kibana:
  host: "ip:5601"
  username: "elastic"
  password: "123456"
# 加载默认的仪表盘样式
setup.dashboards.enabled: true
# 设置如果存在模板，则不覆盖原有模板
setup.template.overwrite: false

启动metricbeat

docker run -d --privileged=true  \
  --name=metricbeat \
  --user=root \
  --volume="$(pwd)/metricbeat.yml:/usr/share/metricbeat/metricbeat.yml:ro" \
  --volume="/var/run/docker.sock:/var/run/docker.sock:ro" \
  --volume="/sys/fs/cgroup:/hostfs/sys/fs/cgroup:ro" \
  --volume="/proc:/hostfs/proc:ro" \
  --volume="/:/hostfs:ro" \
  docker.elastic.co/beats/metricbeat:7.9.3
