近期在做一个项目需要用到STM32F407的两路CAN口，调试时踩坑了，在这里把坑记录一下

单独调试CAN1时没问题，单独调试CAN2时发现出问题了接收不到数据！！！

然后开始了漫长的调试，排查故障最后发现问题所在了，

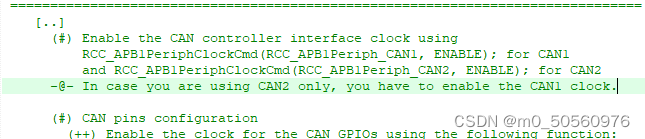

单独使用CAN2时一定要同时打开CAN1和CAN2的时钟，否则CAN2无法正常工作，因为CAN2是从CAN，CAN1是主CAN，ST官方库函数里有说到：

 通过修改后问题得到解决

但是到双CAN通信（CAN1发CAN2收）测试时又进坑了，CAN1发CAN2竟然收不到数据！！！

刚刚CAN2不是收到数据了吗？郁闷半天又开始漫长的调试和排查故障的时候了。

最后发现问题竟然出在过滤器上，CAN2的过滤器需配置>=14

通常情况下CAN1的过滤器时0~13，如果CAN2配置的过滤器也在0~13内的话，那么恭喜你踩坑了。

通过修改CAN2的程序过滤器编号改为14后正常使用。

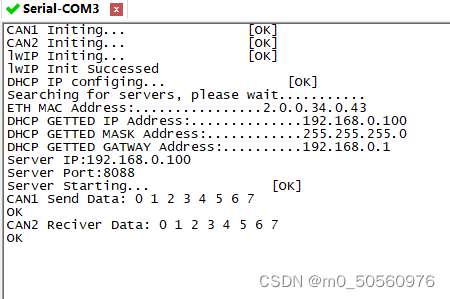

最后效果

GPIO_InitTypeDef GPIO_InitStructure;
CAN_InitTypeDef        CAN_InitStructure;
CAN_FilterInitTypeDef  CAN_FilterInitStructure;

	  RCC_AHB1PeriphClockCmd(RCC_AHB1Periph_GPIOB,ENABLE);
RCC_APB1PeriphClockCmd(RCC_APB1Periph_CAN1, ENABLE);


GPIO_PinAFConfig(GPIOB,GPIO_PinSource8,GPIO_AF_CAN1);
GPIO_PinAFConfig(GPIOB,GPIO_PinSource9,GPIO_AF_CAN1);


GPIO_InitStructure.GPIO_Pin = GPIO_Pin_8| GPIO_Pin_9;
GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF;
GPIO_InitStructure.GPIO_OType = GPIO_OType_PP;
GPIO_InitStructure.GPIO_Speed = GPIO_Speed_100MHz;//100MHz
GPIO_InitStructure.GPIO_PuPd = GPIO_PuPd_UP;
GPIO_Init(GPIOB, &GPIO_InitStructure);

   	CAN_InitStructure.CAN_TTCM=DISABLE;
  	CAN_InitStructure.CAN_ABOM=ENABLE;
  	CAN_InitStructure.CAN_AWUM=ENABLE;
  	CAN_InitStructure.CAN_NART=ENABLE;
  	CAN_InitStructure.CAN_RFLM=DISABLE;
  	CAN_InitStructure.CAN_TXFP=DISABLE;
  	CAN_InitStructure.CAN_Mode= CAN_Mode_Normal;
  	CAN_InitStructure.CAN_SJW=CAN_SJW_1tq;
  	CAN_InitStructure.CAN_BS1=CAN_BS2_6tq;
  	CAN_InitStructure.CAN_BS2=CAN_BS1_7tq;
  	CAN_InitStructure.CAN_Prescaler=6;
  	CAN_Init(CAN1, &CAN_InitStructure);

 	  CAN_FilterInitStructure.CAN_FilterNumber=0;
  	CAN_FilterInitStructure.CAN_FilterMode=CAN_FilterMode_IdMask;
  	CAN_FilterInitStructure.CAN_FilterScale=CAN_FilterScale_32bit;
  	CAN_FilterInitStructure.CAN_FilterIdHigh=0x0000;
  	CAN_FilterInitStructure.CAN_FilterIdLow=0x0000;
  	CAN_FilterInitStructure.CAN_FilterMaskIdHigh=0x0000;
  	CAN_FilterInitStructure.CAN_FilterMaskIdLow=0x0000;
   	CAN_FilterInitStructure.CAN_FilterFIFOAssignment=CAN_Filter_FIFO0;
  	CAN_FilterInitStructure.CAN_FilterActivation=ENABLE;
  	CAN_FilterInit(&CAN_FilterInitStructure);

GPIO_InitTypeDef GPIO_InitStructure;
	  CAN_InitTypeDef        CAN_InitStructure;
  	CAN_FilterInitTypeDef  CAN_FilterInitStructure;

	  RCC_AHB1PeriphClockCmd(RCC_AHB1Periph_GPIOB,ENABLE);

  	RCC_APB1PeriphClockCmd(RCC_APB1Periph_CAN2, ENABLE);

	  GPIO_PinAFConfig(GPIOB,GPIO_PinSource5,GPIO_AF_CAN2);
	  GPIO_PinAFConfig(GPIOB,GPIO_PinSource6,GPIO_AF_CAN2);


	  GPIO_InitStructure.GPIO_Pin = GPIO_Pin_5| GPIO_Pin_6;
    GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF;
    GPIO_InitStructure.GPIO_OType = GPIO_OType_PP;
    GPIO_InitStructure.GPIO_Speed = GPIO_Speed_100MHz;//100MHz
    GPIO_InitStructure.GPIO_PuPd = GPIO_PuPd_UP;
    GPIO_Init(GPIOB, &GPIO_InitStructure);




   	CAN_InitStructure.CAN_TTCM=DISABLE;
  	CAN_InitStructure.CAN_ABOM=ENABLE;
  	CAN_InitStructure.CAN_AWUM=ENABLE;
  	CAN_InitStructure.CAN_NART=ENABLE;
  	CAN_InitStructure.CAN_RFLM=DISABLE;
  	CAN_InitStructure.CAN_TXFP=DISABLE;
  	CAN_InitStructure.CAN_Mode= CAN_Mode_Normal;
  	CAN_InitStructure.CAN_SJW=CAN_SJW_1tq;
  	CAN_InitStructure.CAN_BS1=CAN_BS2_6tq;
  	CAN_InitStructure.CAN_BS2=CAN_BS1_7tq;
  	CAN_InitStructure.CAN_Prescaler=6;
  	CAN_Init(CAN2, &CAN_InitStructure);


 	  CAN_FilterInitStructure.CAN_FilterNumber=20;
  	CAN_FilterInitStructure.CAN_FilterMode=CAN_FilterMode_IdMask;
  	CAN_FilterInitStructure.CAN_FilterScale=CAN_FilterScale_32bit;
  	CAN_FilterInitStructure.CAN_FilterIdHigh=0x0000;
  	CAN_FilterInitStructure.CAN_FilterIdLow=0x0000;
  	CAN_FilterInitStructure.CAN_FilterMaskIdHigh=0x0000;
  	CAN_FilterInitStructure.CAN_FilterMaskIdLow=0x0000;
   	CAN_FilterInitStructure.CAN_FilterFIFOAssignment=CAN_Filter_FIFO0;
  	CAN_FilterInitStructure.CAN_FilterActivation=ENABLE;
  	CAN_FilterInit(&CAN_FilterInitStructure);

提示：如果还是不能用，就要检查CAN芯片的STB引脚是否使能了！！！，这个很重要！！！
