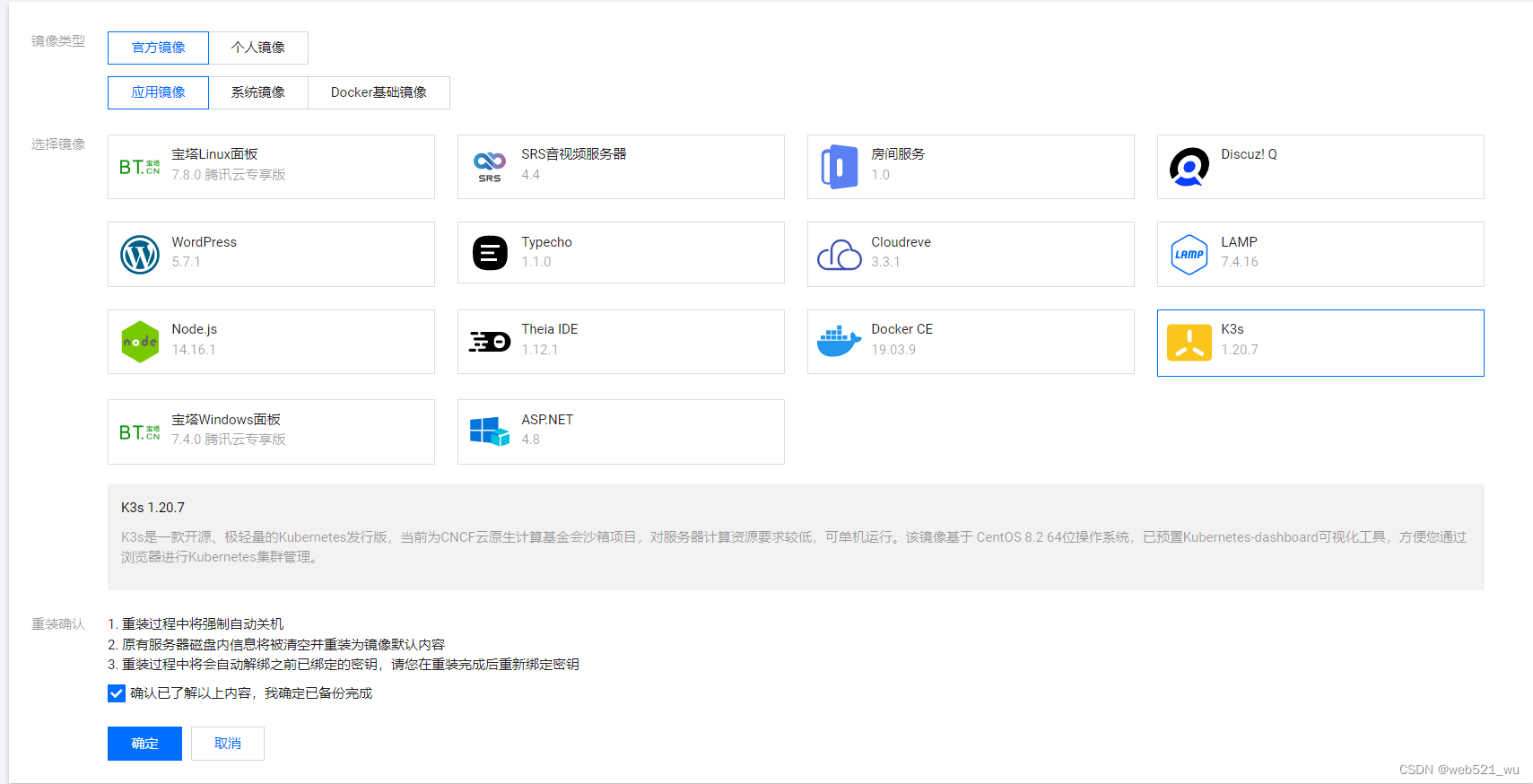

前端时间买了三年腾讯轻服务器，现在准备学习下K8S，但是服务器资源少，退而求其次的使用腾讯轻服务器默认的K3S系统。
1.获取按照提示，获取token ，
2.防火墙开启9090端口， 输入url：http://公网IP:9090登录；
3.开启SSH远程连接:创建密钥，默认下载文件，windows本地重命名增加后缀.pub,CRT通过公钥进行SSH登录。

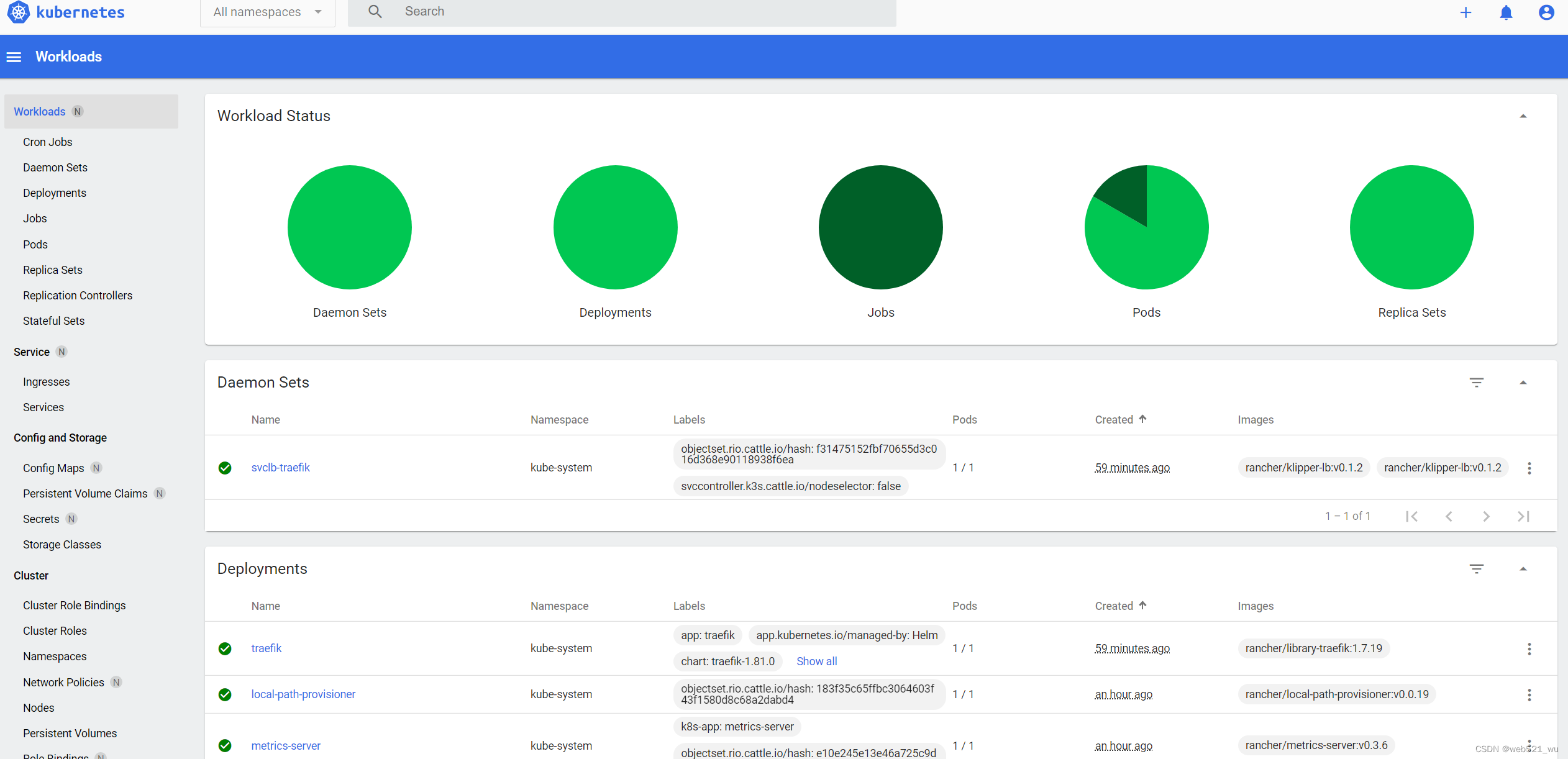

输入url：http://公网IP:9090，可以看到相关菜单

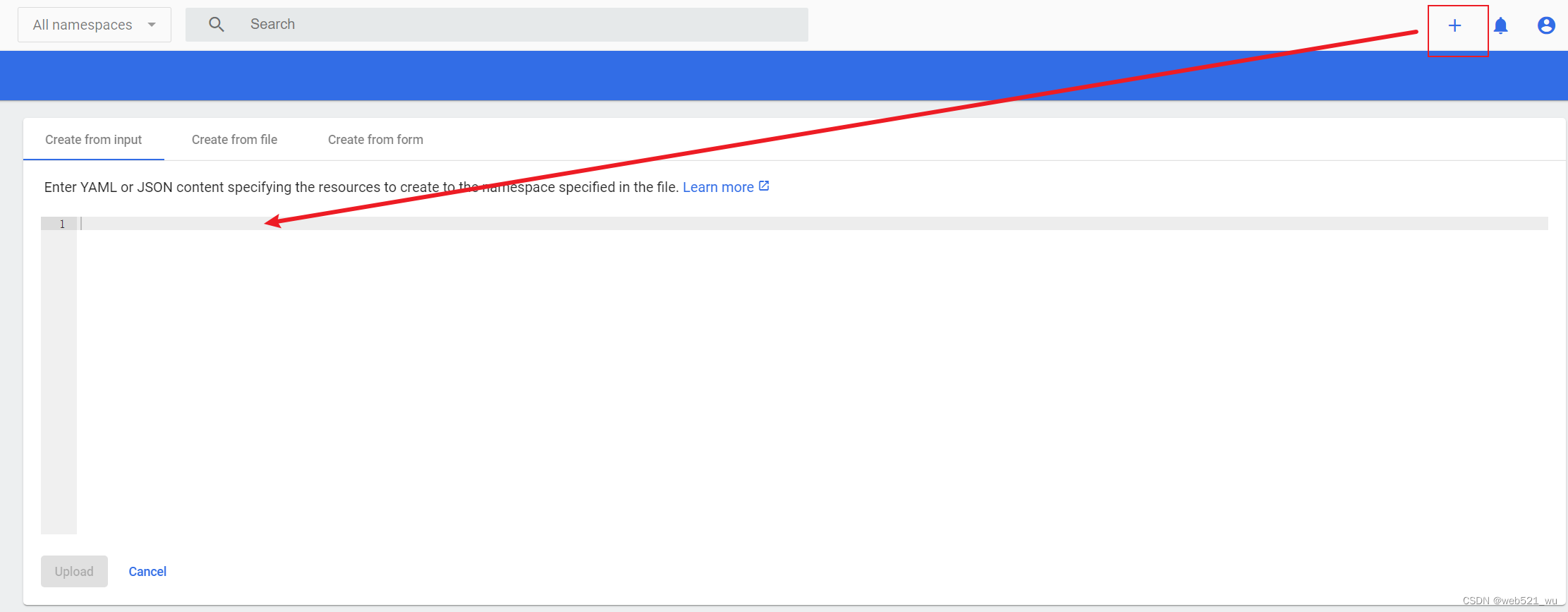

点击右上角“+”，可以创建yaml文件进行服务部署
[root@VM-16-5-centos ~]# hostnamectl
Static hostname: VM-16-5-centos
Icon name: computer-vm
Chassis: vm
Machine ID: e811d69a833e41beaa003c0e69319e90
Boot ID: 5816742493464737aa77fb84af907b88
Virtualization: kvm
Operating System: CentOS Linux 8 (Core)
CPE OS Name: cpe:/o:centos:centos:8
Kernel: Linux 4.18.0-305.3.1.el8.x86_64
Architecture: x86-64
[root@VM-16-5-centos ~]# cat /etc/redhat-release
CentOS Linux release 8.2.2004 (Core)
[root@VM-16-5-centos ~]# uname -a
Linux VM-16-5-centos 4.18.0-305.3.1.el8.x86_64 #1 SMP Tue Jun 1 16:14:33 UTC 2021 x86_64 x86_64 x86_64 GNU/Linux
[root@VM-16-5-centos ~]# kubectl cluster-info
Kubernetes control plane is running at https://127.0.0.1:6443
CoreDNS is running at https://127.0.0.1:6443/api/v1/namespaces/kube-system/services/kube-dns:dns/proxy
Metrics-server is running at https://127.0.0.1:6443/api/v1/namespaces/kube-system/services/https:metrics-server:/proxy
To further debug and diagnose cluster problems, use 'kubectl cluster-info dump'.
[root@VM-16-5-centos ~]# kubectl get nodes -o wide
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
vm-16-5-centos Ready control-plane,master 69m v1.20.7+k3s1 10.0.16.5 <none> CentOS Linux 8 (Core) 4.18.0-305.3.1.el8.x86_64 containerd://1.4.4-k3s1
[root@VM-16-5-centos ~]# kubectl describe node
Name: vm-16-5-centos
Roles: control-plane,master
Labels: beta.kubernetes.io/arch=amd64
beta.kubernetes.io/instance-type=k3s
beta.kubernetes.io/os=linux
k3s.io/hostname=vm-16-5-centos
k3s.io/internal-ip=10.0.16.5
kubernetes.io/arch=amd64
kubernetes.io/hostname=vm-16-5-centos
kubernetes.io/os=linux
node-role.kubernetes.io/control-plane=true
node-role.kubernetes.io/master=true
node.kubernetes.io/instance-type=k3s
Annotations: flannel.alpha.coreos.com/backend-data: {"VtepMAC":"22:6c:c1:03:83:80"}
flannel.alpha.coreos.com/backend-type: vxlan
flannel.alpha.coreos.com/kube-subnet-manager: true
flannel.alpha.coreos.com/public-ip: 10.0.16.5
k3s.io/node-args: ["server","--write-kubeconfig-mode","644"]
k3s.io/node-config-hash: XAEWDMOLOUU74BDTBD2U3FVK7PQCFJ4XWLHQCWRAJLPPNWOIBJEA====
k3s.io/node-env: {"K3S_DATA_DIR":"/var/lib/rancher/k3s/data/474b7b031f3885345db99df7da66f11d537c75180eb6961b6cf2ec25b92efe65"}
node.alpha.kubernetes.io/ttl: 0
volumes.kubernetes.io/controller-managed-attach-detach: true
CreationTimestamp: Fri, 06 May 2022 14:41:53 +0800
Taints: <none>
Unschedulable: false
Lease:
HolderIdentity: vm-16-5-centos
AcquireTime: <unset>
RenewTime: Fri, 06 May 2022 15:51:21 +0800
Conditions:
Type Status LastHeartbeatTime LastTransitionTime Reason Message
---- ------ ----------------- ------------------ ------ -------
NetworkUnavailable False Fri, 06 May 2022 15:04:23 +0800 Fri, 06 May 2022 15:04:23 +0800 FlannelIsUp Flannel is running on this node
MemoryPressure False Fri, 06 May 2022 15:49:41 +0800 Fri, 06 May 2022 14:41:53 +0800 KubeletHasSufficientMemory kubelet has sufficient memory available
DiskPressure False Fri, 06 May 2022 15:49:41 +0800 Fri, 06 May 2022 14:41:53 +0800 KubeletHasNoDiskPressure kubelet has no disk pressure
PIDPressure False Fri, 06 May 2022 15:49:41 +0800 Fri, 06 May 2022 14:41:53 +0800 KubeletHasSufficientPID kubelet has sufficient PID available
Ready True Fri, 06 May 2022 15:49:41 +0800 Fri, 06 May 2022 15:04:27 +0800 KubeletReady kubelet is posting ready status
Addresses:
InternalIP: 10.0.16.5
Hostname: vm-16-5-centos
Capacity:
cpu: 2
ephemeral-storage: 82503044Ki
hugepages-1Gi: 0
hugepages-2Mi: 0
memory: 3826344Ki
pods: 110
Allocatable:
cpu: 2
ephemeral-storage: 80258961141
hugepages-1Gi: 0
hugepages-2Mi: 0
memory: 3826344Ki
pods: 110
System Info:
Machine ID: e811d69a833e41beaa003c0e69319e90
System UUID: 66cd78fa-04cf-4ed0-8d34-e142131d09b7
Boot ID: 58167424-9346-4737-aa77-fb84af907b88
Kernel Version: 4.18.0-305.3.1.el8.x86_64
OS Image: CentOS Linux 8 (Core)
Operating System: linux
Architecture: amd64
Container Runtime Version: containerd://1.4.4-k3s1
Kubelet Version: v1.20.7+k3s1
Kube-Proxy Version: v1.20.7+k3s1
PodCIDR: 10.42.0.0/24
PodCIDRs: 10.42.0.0/24
ProviderID: k3s://vm-16-5-centos
Non-terminated Pods: (5 in total)
Namespace Name CPU Requests CPU Limits Memory Requests Memory Limits AGE
--------- ---- ------------ ---------- --------------- ------------- ---
kube-system svclb-traefik-szvsd 0 (0%) 0 (0%) 0 (0%) 0 (0%) 68m
kube-system metrics-server-86cbb8457f-scttb 0 (0%) 0 (0%) 0 (0%) 0 (0%) 69m
kube-system local-path-provisioner-5ff76fc89d-4v6z9 0 (0%) 0 (0%) 0 (0%) 0 (0%) 69m
kube-system coredns-854c77959c-xhn6w 100m (5%) 0 (0%) 70Mi (1%) 170Mi (4%) 69m
kube-system traefik-6f9cbd9bd4-pcq5g 0 (0%) 0 (0%) 0 (0%) 0 (0%) 68m
Allocated resources:
(Total limits may be over 100 percent, i.e., overcommitted.)
Resource Requests Limits
-------- -------- ------
cpu 100m (5%) 0 (0%)
memory 70Mi (1%) 170Mi (4%)
ephemeral-storage 0 (0%) 0 (0%)
hugepages-1Gi 0 (0%) 0 (0%)
hugepages-2Mi 0 (0%) 0 (0%)
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal Starting 69m kubelet Starting kubelet.
Warning InvalidDiskCapacity 69m kubelet invalid capacity 0 on image filesystem
Normal NodeHasSufficientMemory 69m kubelet Node vm-16-5-centos status is now: NodeHasSufficientMemory
Normal NodeHasNoDiskPressure 69m kubelet Node vm-16-5-centos status is now: NodeHasNoDiskPressure
Normal NodeHasSufficientPID 69m kubelet Node vm-16-5-centos status is now: NodeHasSufficientPID
Normal NodeAllocatableEnforced 69m kubelet Updated Node Allocatable limit across pods
Normal Starting 69m kube-proxy Starting kube-proxy.
Normal NodeReady 69m kubelet Node vm-16-5-centos status is now: NodeReady
Normal Starting 47m kube-proxy Starting kube-proxy.
Normal Starting 47m kubelet Starting kubelet.
Warning InvalidDiskCapacity 47m kubelet invalid capacity 0 on image filesystem
Normal NodeHasSufficientMemory 47m kubelet Node vm-16-5-centos status is now: NodeHasSufficientMemory
Normal NodeHasNoDiskPressure 47m kubelet Node vm-16-5-centos status is now: NodeHasNoDiskPressure
Normal NodeHasSufficientPID 47m kubelet Node vm-16-5-centos status is now: NodeHasSufficientPID
Warning Rebooted 47m kubelet Node vm-16-5-centos has been rebooted, boot id: 58167424-9346-4737-aa77-fb84af907b88
Normal NodeNotReady 47m kubelet Node vm-16-5-centos status is now: NodeNotReady
Normal NodeAllocatableEnforced 47m kubelet Updated Node Allocatable limit across pods
Normal NodeReady 47m kubelet Node vm-16-5-centos status is now: NodeReady
[root@VM-16-5-centos ~]# ctr
NAME:
ctr -
__
_____/ /______
/ ___/ __/ ___/
/ /__/ /_/ /
\___/\__/_/
containerd CLI
USAGE:
ctr [global options] command [command options] [arguments...]
VERSION:
v1.4.4-k3s1
DESCRIPTION:
ctr is an unsupported debug and administrative client for interacting
with the containerd daemon. Because it is unsupported, the commands,
options, and operations are not guaranteed to be backward compatible or
stable from release to release of the containerd project.
COMMANDS:
plugins, plugin provides information about containerd plugins
version print the client and server versions
containers, c, container manage containers
content manage content
events, event display containerd events
images, image, i manage images
leases manage leases
namespaces, namespace, ns manage namespaces
pprof provide golang pprof outputs for containerd
run run a container
snapshots, snapshot manage snapshots
tasks, t, task manage tasks
install install a new package
oci OCI tools
shim interact with a shim directly
help, h Shows a list of commands or help for one command
GLOBAL OPTIONS:
--debug enable debug output in logs
--address value, -a value address for containerd's GRPC server (default: "/run/k3s/containerd/containerd.sock") [$CONTAINERD_ADDRESS]
--timeout value total timeout for ctr commands (default: 0s)
--connect-timeout value timeout for connecting to containerd (default: 0s)
--namespace value, -n value namespace to use with commands (default: "k8s.io") [$CONTAINERD_NAMESPACE]
--help, -h show help
--version, -v print the version
[root@VM-16-5-centos ~]# ctr plugins ls
TYPE ID PLATFORMS STATUS
io.containerd.snapshotter.v1 overlayfs linux/amd64 ok
io.containerd.service.v1 introspection-service - ok
io.containerd.content.v1 content - ok
io.containerd.snapshotter.v1 fuse-overlayfs linux/amd64 ok
io.containerd.snapshotter.v1 native linux/amd64 ok
io.containerd.metadata.v1 bolt - ok
io.containerd.differ.v1 walking linux/amd64 ok
io.containerd.gc.v1 scheduler - ok
io.containerd.service.v1 containers-service - ok
io.containerd.service.v1 content-service - ok
io.containerd.service.v1 diff-service - ok
io.containerd.service.v1 images-service - ok
io.containerd.service.v1 leases-service - ok
io.containerd.service.v1 namespaces-service - ok
io.containerd.service.v1 snapshots-service - ok
io.containerd.runtime.v1 linux linux/amd64 ok
io.containerd.runtime.v2 task linux/amd64 ok
io.containerd.monitor.v1 cgroups linux/amd64 ok
io.containerd.service.v1 tasks-service - ok
io.containerd.internal.v1 restart - ok
io.containerd.grpc.v1 containers - ok
io.containerd.grpc.v1 content - ok
io.containerd.grpc.v1 diff - ok
io.containerd.grpc.v1 events - ok
io.containerd.grpc.v1 healthcheck - ok
io.containerd.grpc.v1 images - ok
io.containerd.grpc.v1 leases - ok
io.containerd.grpc.v1 namespaces - ok
io.containerd.internal.v1 opt - ok
io.containerd.grpc.v1 snapshots - ok
io.containerd.grpc.v1 tasks - ok
io.containerd.grpc.v1 version - ok
io.containerd.grpc.v1 cri linux/amd64 ok
[root@VM-16-5-centos ~]# crictl
NAME:
crictl - client for CRI
USAGE:
crictl [global options] command [command options] [arguments...]
VERSION:
v1.20.0-k3s1
COMMANDS:
attach Attach to a running container
create Create a new container
exec Run a command in a running container
version Display runtime version information
images, image, img List images
inspect Display the status of one or more containers
inspecti Return the status of one or more images
imagefsinfo Return image filesystem info
inspectp Display the status of one or more pods
logs Fetch the logs of a container
port-forward Forward local port to a pod
ps List containers
pull Pull an image from a registry
run Run a new container inside a sandbox
runp Run a new pod
rm Remove one or more containers
rmi Remove one or more images
rmp Remove one or more pods
pods List pods
start Start one or more created containers
info Display information of the container runtime
stop Stop one or more running containers
stopp Stop one or more running pods
update Update one or more running containers
config Get and set crictl client configuration options
stats List container(s) resource usage statistics
completion Output shell completion code
help, h Shows a list of commands or help for one command
GLOBAL OPTIONS:
--config value, -c value Location of the client config file. If not specified and the default does not exist, the program's directory is searched as well (default: "/var/lib/rancher/k3s/agent/etc/crictl.yaml") [$CRI_CONFIG_FILE]
--debug, -D Enable debug mode (default: false)
--image-endpoint value, -i value Endpoint of CRI image manager service (default: uses 'runtime-endpoint' setting) [$IMAGE_SERVICE_ENDPOINT]
--runtime-endpoint value, -r value Endpoint of CRI container runtime service (default: uses in order the first successful one of [unix:///run/k3s/containerd/containerd.sock unix:///var/run/dockershim.sock unix:///run/containerd/containerd.sock unix:///run/crio/crio.sock]). Default is now deprecated and the endpoint should be set instead. [$CONTAINER_RUNTIME_ENDPOINT]
--timeout value, -t value Timeout of connecting to the server in seconds (e.g. 2s, 20s.). 0 or less is set to default (default: 2s)
--help, -h show help (default: false)
--version, -v print the version (default: false)

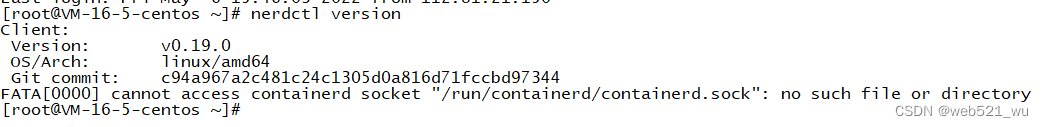

[root@VM-16-5-centos ~]# nerdctl
-bash: nerdctl: command not found
[root@VM-16-5-centos ~]# kubectl get pods --all-namespaces
NAMESPACE NAME READY STATUS RESTARTS AGE
kube-system helm-install-traefik-5vl8b 0/1 Completed 0 73m
kube-system svclb-traefik-szvsd 2/2 Running 2 73m
kube-system metrics-server-86cbb8457f-scttb 1/1 Running 1 73m
kube-system local-path-provisioner-5ff76fc89d-4v6z9 1/1 Running 1 73m
kube-system coredns-854c77959c-xhn6w 1/1 Running 1 73m
kube-system traefik-6f9cbd9bd4-pcq5g 1/1 Running 1 73m
[root@VM-16-5-centos ~]# kubectl get ns
NAME STATUS AGE
default Active 74m
kube-system Active 74m
kube-public Active 74m
kube-node-lease Active 74m
[root@VM-16-5-centos ~]# kubectl get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kubernetes ClusterIP 10.43.0.1 <none> 443/TCP 75m

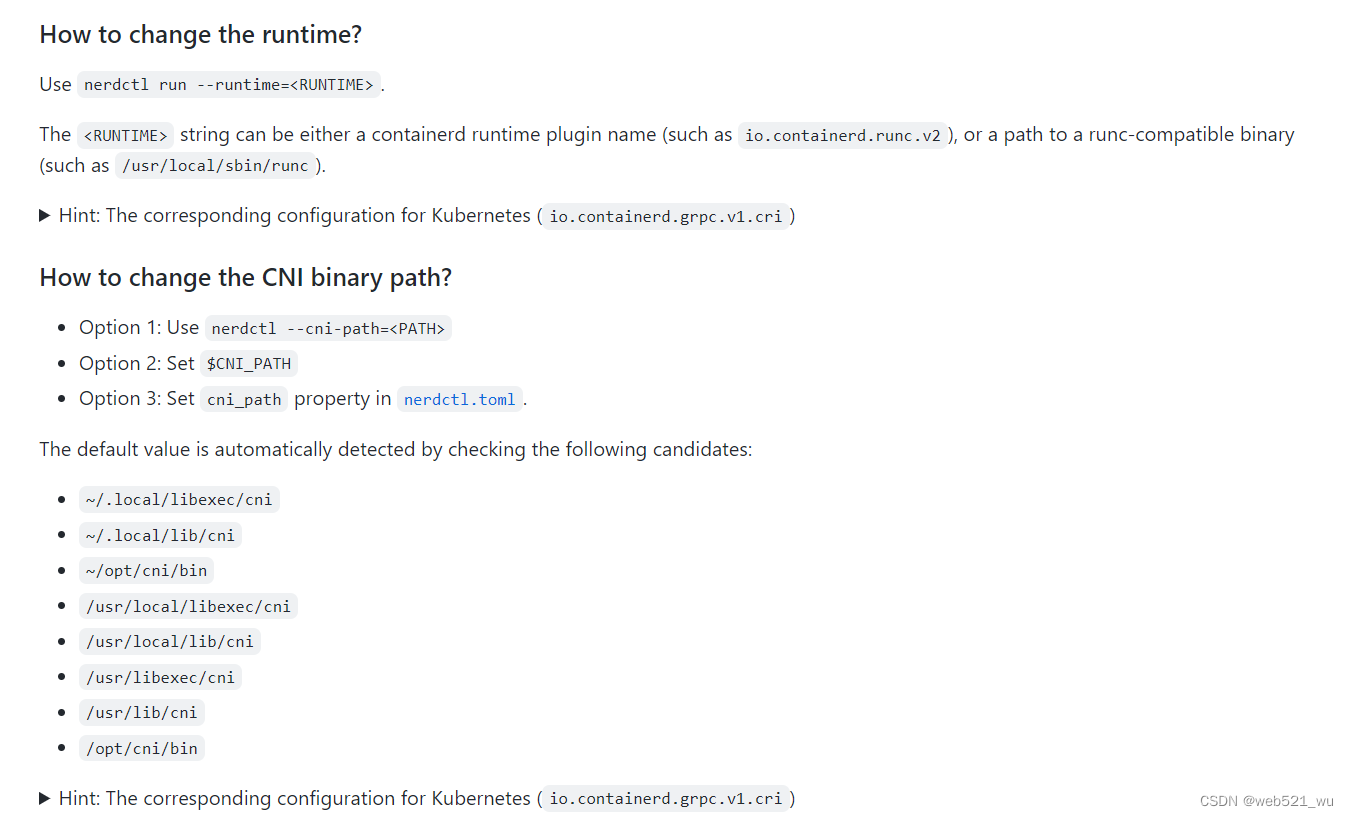

https://github.com/containerd/nerdctl/releases
[root@VM-16-5-centos ~]# wget https://github.91chi.fun//https://github.com//containerd/nerdctl/releases/download/v0.19.0/nerdctl-0.19.0-linux-amd64.tar.gz
[root@VM-16-5-centos ~]# mkdir -p /usr/local/containerd/bin && tar -zxvf nerdctl-0.19.0-linux-amd64.tar.gz nerdctl && mv nerdctl /usr/local/containerd/bin
[root@VM-16-5-centos ~]# ln -s /usr/local/containerd/bin/nerdctl /usr/bin/nerdctl
nerdctl运行时路径待解决
安装部署后，使用默认的runtime路径，不是K3s的/run/k3s/containerd/containerd.sock；需要修改路径，按照路径进行修改，未成功，待解决
https://github.com/containerd/nerdctl/blob/master/docs/faq.md#how-to-change-the-runtime
我正在尝试使用ruby和Savon来使用网络服务。测试服务为http://www.webservicex.net/WS/WSDetails.aspx?WSID=9&CATID=2require'rubygems'require'savon'client=Savon::Client.new"http://www.webservicex.net/stockquote.asmx?WSDL"client.get_quotedo|soap|soap.body={:symbol=>"AAPL"}end返回SOAP异常。检查soap信封，在我看来soap请求没有正确的命名空间。任何人都可以建议我
我想安装一个带有一些身份验证的私有(private)Rubygem服务器。我希望能够使用公共(public)Ubuntu服务器托管内部gem。我读到了http://docs.rubygems.org/read/chapter/18.但是那个没有身份验证-如我所见。然后我读到了https://github.com/cwninja/geminabox.但是当我使用基本身份验证(他们在他们的Wiki中有)时，它会提示从我的服务器获取源。所以。如何制作带有身份验证的私有(private)Rubygem服务器？这是不可能的吗？谢谢。编辑:Geminabox问题。我尝试“捆绑”以安装新的gem..
我有一个在Linux服务器上运行的ruby脚本。它不使用rails或任何东西。它基本上是一个命令行ruby脚本，可以像这样传递参数:./ruby_script.rbarg1arg2如何将参数抽象到配置文件(例如yaml文件或其他文件)中？您能否举例说明如何做到这一点？提前谢谢你。 最佳答案 首先，您可以运行一个写入YAML配置文件的独立脚本:require"yaml"File.write("path_to_yaml_file",[arg1,arg2].to_yaml)然后，在您的应用中阅读它:require"yaml"arg
最近，当我启动我的Rails服务器时，我收到了一长串警告。虽然它不影响我的应用程序，但我想知道如何解决这些警告。我的估计是imagemagick以某种方式被调用了两次？当我在警告前后检查我的git日志时。我想知道如何解决这个问题。-bcrypt-ruby(3.1.2)-better_errors(1.0.1)+bcrypt(3.1.7)+bcrypt-ruby(3.1.5)-bcrypt(>=3.1.3)+better_errors(1.1.0)bcrypt和imagemagick有关系吗？/Users/rbchris/.rbenv/versions/2.0.0-p247/lib/ru
在Rails4.0.2中，我使用s3_direct_upload和aws-sdkgems直接为s3存储桶上传文件。在开发环境中它工作正常，但在生产环境中它会抛出如下错误，ActionView::Template::Error(noimplicitconversionofnilintoString)在View中，create_cv_url,:id=>"s3_uploader",:key=>"cv_uploads/{unique_id}/${filename}",:key_starts_with=>"cv_uploads/",:callback_param=>"cv[direct_uplo
我已经在Sinatra上创建了应用程序，它代表了一个简单的API。我想在生产和开发上进行部署。我想在部署时选择，是开发还是生产，一些方法的逻辑应该改变，这取决于部署类型。是否有任何想法，如何完成以及解决此问题的一些示例。例子:我有代码get'/api/test'doreturn"Itisdev"end但是在部署到生产环境之后我想在运行/api/test之后看到ItisPROD如何实现？ 最佳答案 根据SinatraDocumentation:EnvironmentscanbesetthroughtheRACK_ENVenvironm
我想在Ruby中创建一个用于开发目的的极其简单的Web服务器(不，不想使用现成的解决方案)。代码如下:#!/usr/bin/rubyrequire'socket'server=TCPServer.new('127.0.0.1',8080)whileconnection=server.acceptheaders=[]length=0whileline=connection.getsheaders想法是从命令行运行这个脚本，提供另一个脚本，它将在其标准输入上获取请求，并在其标准输出上返回完整的响应。到目前为止一切顺利，但事实证明这真的很脆弱，因为它在第二个请求上中断并出现错误:/usr/b
我正在玩HTML5视频并且在ERB中有以下片段:mp4视频从在我的开发环境中运行的服务器很好地流式传输到chrome。然而firefox显示带有海报图像的视频播放器，但带有一个大X。问题似乎是mongrel不确定ogv扩展的mime类型，并且只返回text/plain，如curl所示:$curl-Ihttp://0.0.0.0:3000/pr6.ogvHTTP/1.1200OKConnection:closeDate:Mon,19Apr201012:33:50GMTLast-Modified:Sun,18Apr201012:46:07GMTContent-Type:text/plain
您如何在Rails中的实时服务器上进行有效调试，无论是在测试版/生产服务器上？我试过直接在服务器上修改文件，然后重启应用，但是修改好像没有生效，或者需要很长时间(缓存？)我也试过在本地做“脚本/服务器生产”，但是那很慢另一种选择是编码和部署，但效率很低。有人对他们如何有效地做到这一点有任何见解吗？ 最佳答案 我会回答你的问题，即使我不同意这种热修补服务器代码的方式:)首先，你真的确定你已经重启了服务器吗？您可以通过跟踪日志文件来检查它。您更改的代码显示的View可能会被缓存。缓存页面位于tmp/cache文件夹下。您可以尝试手动删除
之前在培训新生的时候，windows环境下配置opencv环境一直教的都是网上主流的vsstudio配置属性表，但是这个似乎对新生来说难度略高(虽然个人觉得完全是他们自己的问题)，加之暑假之后对cmake实在是爱不释手，且这样配置确实十分简单(其实都不需要配置)，故斗胆妄言vscode下配置CV之法。其实极为简单，图比较多所以很长。如果你看此文还配不好，你应该思考一下是不是自己的问题。闲话少说，直接开始。0.CMkae简介有的人到大二了都不知道cmake是什么，我不说是谁。CMake是一个开源免费并且跨平台的构建工具，可以用简单的语句来描述所有平台的编译过程。它能够根据当前所在平台输出对应的m
