一.什么是光立方？
首先，我以一个转载于B站的光立方视频开始，让对这个没有了解的小伙伴初步了解什么是光立方。其次，可能有人会问，网上有很多这样的教程，为什么我会说最详细。对于这个疑问，首先我说视频，大部分的视频我们会发现很多细小的原理知识会略过不讲，只告诉你该用什么器件，或者直接开始焊接，看了半天也看不懂，以至于无从下手，最后感觉这东西好难，很容易放弃。然后，我来说文章，很多文章代码方面会提供最简单的代码，主要的代码会不开源，需要你购买。所以，我才准备了一篇比较完整的文章，解决广大喜欢制作的朋友的问题~
Arduino 8*8光立方，你值得拥有
二.我对于光立方原理的见解
1.首先，我们要先实现控制第一层的任意列，任意个灯的控制，这里如果用单片机的两个引脚控制一个LED,我们这个需要控制512个LED灯，我们所需要的IO口的数量可想而知，所以，我们可能会想如何用少的IO口控制多个LED呢？这里，有一点译码器知识的小伙伴可能会说用74hc138译码器不就得了，但是，我们仔细想一想，这个确实可以让某一列对应引脚低电平，但是不能任意控制那一列高电平，那一列低电平，这里又卡住了，难道没其他办法了吗？行了，我不卖关子了，我用的是74hc595锁存器，至于为什么选择它呢？因为它只需要三个IO口就能随意控制8个接线为高电平或低电平。当你输入一位数据到DS引脚，给SH-CP引脚一个高电平，这位数据就被74hc595锁存了，然后不要忘记将该引脚在变成低电平，此时因为还没输入到8位数据，所以此时ST-CP引脚为低电平。这样重复8次就给锁存器锁存了8位数据，此时给ST-CP一个高电平，锁存器就会将这8位数据存到自己的flash中，对后面的8个接线输出放大后的高低电平，用于驱动LED。但是，由于数据你是一位一位移进去的，所以你移进去的第一位对应的是控制的是第8个输入口，而你的第8个数据对应第一个输入口，大家这里如果听不懂，我会加一个我认为讲这个锁存器好的视频给大家，帮助大家理解。
5分钟了解移位寄存器74HC595工作原理及使用（SIPO）
2.然后我就来说我是如何控制第一层任意列和任意灯的亮灭的，我是先将每一横行的阳极用一根铜线连接起来，每一列的阴极用一根铜线连接起来，这样，我们得到了8行接正极的铜线，8列接负极的铜线，这里，我们各将这8个正极和负极分别用一个74hc595控制输出高低电平（本质是放大的高低电平，也可以说是正负极），这样，我们就可以控制哪几行给正极（高电平），然后在控制哪几列接地（低电平），就会像是两个不平行的线会有交点一样，这里交点就是LED灯，我们就可以控制任意行，任意列和任意灯的亮灭。这里为防止大家不理解，我举个例子。
比如，我只点亮第1行，那么我给控制行的74hc595的数据用16进制写出来就是0x01,转为二进制也就是0000 0001，这样意思就是让第一行接上正极了，其他行全接负极（这里默认锁存器第一个输出口对应接到LED第一行的正极上），在将控制列的锁存器输入数据0000 0000，16进制为0X00，相当于全为负极，这样就只有第一行亮起来了。如果点亮第一列，我们就写入二进制数据1111 1111, 16进制为0xFF,在将控制列的锁存器传入数据1111 1110，就可以了。还有就是控制任意LED灯，比如控制第一个灯，就只将第一行给高电平，然后只给第一列低电平，这样就只有第一个灯亮起来。相信到这里，大家已经了解如何控制第一层了。那，我们如何控制每一层的任意列，任意行，任意个灯的亮灭呢？其实这里我们可以进行将第一层叠加上去，但是控制正级的那个锁存器，一个就可以控制整个8层的正极，我们是将每一层的正极都与第一层正极对应相连接，然后每一层的负极都需要一个单独的锁存器，这样，你在想一想是不是用很少的IO口控制了512个灯呢！
3.对于如何只点亮立方体的最外层的12条棱，这种点亮方法如果和上面那样显然是不能一次性做到的，所以，我们可以这么想，如果我们一条棱一条棱顺序显示，这样利用我们人眼对于接受光的变化有时间差。这样我们顺序将一个棱一个棱点亮，在我们眼睛看来，其实就是这12条棱一起点亮，这就解决了这类不能依靠我这个电路设计的图案的问题了。
4.相信大家看到这，在大脑里应该已经形成了一个基本框架，所以，我这里先告诉大家我对于我在下面用proteus仿真的电路位置的安排，首先，我们会看到最大的一个8*8的方阵就是我们的第一层，其左边有一个74hc595的8个输出口依次连接这层的8行阳极，这8个输出口不仅是这层的阳极，还是其他7层的阳极控制端。随后我们向上看对应的就是第2层，第三层.....,下面看图吧。
如果有下载proteus的小伙伴，我下面百度云盘里是完整电路图。
三.代码部分
main函数
#include "stm32f10x.h" // Device header
#include "LED.h"
#include "Delay.h"
#include "xianshi.h"
int main()
{
/*
int a[]={0XFF,0X00,0XFF,0X01,0X80,0XFF,0X7E,0X02,0X40,0X7E,0X3C,0X04,0X20,0X3C,0X18,0X08,0X10,0X18,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X40,0x20,0x10,0x08,0x04,0x02,0x01,0X08,0X1C,0X3E,0X3E,0X14,0X08,0X1C,0X3E,0X3E,0X14,0X08,0X1C,0X3E,0X3E,0X14};//控制给阳极的数据
int b[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};//控0XE3制第一层哪个灯亮的数据
int c[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XFE,0XFE,0XFE,0XFE,0XFE,0XFD,0XFD,0XFD,0XFD,0XFD,0XFB,0XFB,0XFB,0XFB,0XFB};//控0XC1制第二层哪个灯亮的数据
int d[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XFF,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XFF,0XFE,0XFE,0XFE,0XFE,0XFD,0XFD,0XFD,0XFD,0XFD,0XFB,0XFB,0XFB,0XFB,0XFB};//控0XC9制第三层哪个灯亮的数据
int e[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XFF,0XFF,0XC1,0XC1,0XC1,0XC1,0XC1,0XC1,0XC1,0XC1,0XC1,0XC1,0XC1,0XC1,0XFF,0XFF,0XFE,0XFE,0XFE,0XFD,0XFD,0XFD,0XFD,0XFD,0XFB,0XFB,0XFB,0XFB,0XFB};//控0XEB制第四层哪个灯亮的数据
int f[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XFF,0XFF,0XFF,0XC9,0XC9,0XC9,0XC9,0XC9,0XC9,0XC9,0XC9,0XC9,0XC9,0XC9,0XFF,0XFF,0XFF,0XFE,0XFE,0XFD,0XFD,0XFD,0XFD,0XFD,0XFB,0XFB,0XFB,0XFB,0XFB};//控0XFF制第五层哪个灯亮的数据
int g[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XFF,0XFF,0XFF,0XFF,0XEB,0XEB,0XEB,0XEB,0XEB,0XEB,0XEB,0XEB,0XEB,0XEB,0XFF,0XFF,0XFF,0XFF,0XFE,0XFD,0XFD,0XFD,0XFD,0XFD,0XFB,0XFB,0XFB,0XFB,0XFB};//控0XFF制第六层哪个灯亮的数据
int h[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};//控制第七层哪个灯亮的数据
int i[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};//控制第八层哪个灯亮的数据
int j[]={0X08,0X1C,0X3E,0X3E,0X14,0X08,0X1C,0X3E,0X3E,0X14,0X08,0X1C,0X3E,0X3E,0X14,0X08,0X1C,0X3E,0X3E,0X14,0X08,0X1C,0X3E,0X3E,0X14};
int k[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
int l[]={0XF7,0XF7,0XF7,0XF7,0XF7,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XBF,0XBF,0XBF,0XBF,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F};
int m[]={0XF7,0XF7,0XF7,0XF7,0XF7,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XBF,0XBF,0XBF,0XBF,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F};
int n[]={0XF7,0XF7,0XF7,0XF7,0XF7,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XBF,0XBF,0XBF,0XBF,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F};
int o[]={0XF7,0XF7,0XF7,0XF7,0XF7,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XBF,0XBF,0XBF,0XBF,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F};
int p[]={0XF7,0XF7,0XF7,0XF7,0XF7,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XBF,0XBF,0XBF,0XBF,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F};
int q[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
int r[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
int a1[]={0X40,0X20,0X10,0X08,0X04,0X40,0X20,0X10,0X08,0X04,0X40,0X20,0X10,0X08,0X04,0X40,0X20,0X10,0X08,0X04,0X40,0X20,0X10,0X08,0X04,0X40,0X20,0X10,0X08,0X04,0X40,0X20,0X10,0X08,0X04,0X40,0X20,0X10,0X08,0X04};
int b1[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XE3,0XC1,0XC1,0XEB};
int c1[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XE3,0XC1,0XC1,0XEB,0XFF,0XFF,0XFF,0XFF,0XFF};
int d1[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XE3,0XC1,0XC1,0XEB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
int e1[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XE3,0XC1,0XC1,0XEB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
int f1[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XE3,0XC1,0XC1,0XEB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
int g1[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XE3,0XC1,0XC1,0XEB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
int h1[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XE3,0XC1,0XC1,0XEB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
int i1[]={0XF7,0XE3,0XC1,0XC1,0XEB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
*/
GPIO1_Init(); //数组第一与第二位控制全亮全灭，第三到第六控制12条最外层棱亮，7~10为下一小层棱亮，11~14控制在里一层的棱，15~18控制最里层的棱亮
//第19~24为心性一点一点显示,24~32为心形从前到后闪烁，33~37为最左面心形显示 38~72为从左到右显示心形
//第三行从a1开始为心形从上到下显示
//第四行从a3开始为瀑布繁星
while(1)
{
liangmie();//此处调用显示图像的子函数
/*
GPIO_ResetBits(GPIOA,GPIO_Pin_3);//以下注释掉的是传数据的过程，无意义
GPIO_ResetBits(GPIOA,GPIO_Pin_6);
GPIO_ResetBits(GPIOA,GPIO_Pin_1);
GPIO_ResetBits(GPIOA,GPIO_Pin_4);
GPIO_SetBits(GPIOA,GPIO_Pin_2);//第一位数据
GPIO_ResetBits(GPIOA,GPIO_Pin_5);
GPIO_SetBits(GPIOA,GPIO_Pin_1);
GPIO_SetBits(GPIOA,GPIO_Pin_4);//第一位数据传输结束
GPIO_ResetBits(GPIOA,GPIO_Pin_1);
GPIO_ResetBits(GPIOA,GPIO_Pin_4);
GPIO_SetBits(GPIOA,GPIO_Pin_2);//第二位数据
GPIO_ResetBits(GPIOA,GPIO_Pin_5);
GPIO_SetBits(GPIOA,GPIO_Pin_1);
GPIO_SetBits(GPIOA,GPIO_Pin_4);//第二位数据传输结束
GPIO_ResetBits(GPIOA,GPIO_Pin_1);
GPIO_ResetBits(GPIOA,GPIO_Pin_4);
GPIO_SetBits(GPIOA,GPIO_Pin_2);//第三位数据
GPIO_ResetBits(GPIOA,GPIO_Pin_5);
GPIO_SetBits(GPIOA,GPIO_Pin_1);
GPIO_SetBits(GPIOA,GPIO_Pin_4);//第三位数据传输结束
GPIO_ResetBits(GPIOA,GPIO_Pin_1);
GPIO_ResetBits(GPIOA,GPIO_Pin_4);
GPIO_SetBits(GPIOA,GPIO_Pin_2);//第四位数据
GPIO_ResetBits(GPIOA,GPIO_Pin_5);
GPIO_SetBits(GPIOA,GPIO_Pin_1);
GPIO_SetBits(GPIOA,GPIO_Pin_4);//第四位数据传输结束
GPIO_ResetBits(GPIOA,GPIO_Pin_1);
GPIO_ResetBits(GPIOA,GPIO_Pin_4);
GPIO_SetBits(GPIOA,GPIO_Pin_2);//第五位数据
GPIO_ResetBits(GPIOA,GPIO_Pin_5);
GPIO_SetBits(GPIOA,GPIO_Pin_1);
GPIO_SetBits(GPIOA,GPIO_Pin_4);//第五位数据传输结束
GPIO_ResetBits(GPIOA,GPIO_Pin_1);
GPIO_ResetBits(GPIOA,GPIO_Pin_4);
GPIO_ResetBits(GPIOA,GPIO_Pin_2);//第六位数据
GPIO_ResetBits(GPIOA,GPIO_Pin_5);
GPIO_SetBits(GPIOA,GPIO_Pin_1);
GPIO_SetBits(GPIOA,GPIO_Pin_4);//第六位数据传输结束
GPIO_ResetBits(GPIOA,GPIO_Pin_1);
GPIO_ResetBits(GPIOA,GPIO_Pin_4);
GPIO_SetBits(GPIOA,GPIO_Pin_2);//第七位数据
GPIO_ResetBits(GPIOA,GPIO_Pin_5);
GPIO_SetBits(GPIOA,GPIO_Pin_1);
GPIO_SetBits(GPIOA,GPIO_Pin_4);//第七位数据传输结束
GPIO_ResetBits(GPIOA,GPIO_Pin_1);
GPIO_ResetBits(GPIOA,GPIO_Pin_4);
GPIO_SetBits(GPIOA,GPIO_Pin_2);//第八位数据
GPIO_ResetBits(GPIOA,GPIO_Pin_5);
GPIO_SetBits(GPIOA,GPIO_Pin_1);
GPIO_SetBits(GPIOA,GPIO_Pin_4);//第八位数据传输结束
GPIO_SetBits(GPIOA,GPIO_Pin_3);
GPIO_SetBits(GPIOA,GPIO_Pin_6);
*/
}
}
按位传输数据的子函数.c
#include "stm32f10x.h" // Device header
#include "Delay.h"
int i2;
void GPIO1_Init()
{
GPIO_InitTypeDef GPIO_InitStruct;
GPIO_InitTypeDef GPIO_InitStruct1;
RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOA,ENABLE);
RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOB,ENABLE);
GPIO_InitStruct.GPIO_Mode=GPIO_Mode_Out_PP;
GPIO_InitStruct.GPIO_Pin=GPIO_Pin_1|GPIO_Pin_2|GPIO_Pin_3|GPIO_Pin_4|GPIO_Pin_5|GPIO_Pin_6|GPIO_Pin_7|GPIO_Pin_8|GPIO_Pin_9|GPIO_Pin_10|GPIO_Pin_11|GPIO_Pin_12|GPIO_Pin_13|GPIO_Pin_14|GPIO_Pin_15;
GPIO_InitStruct.GPIO_Speed=GPIO_Speed_50MHz;
GPIO_Init(GPIOA,&GPIO_InitStruct);
GPIO_InitStruct1.GPIO_Mode=GPIO_Mode_Out_PP;
GPIO_InitStruct1.GPIO_Pin=GPIO_Pin_1|GPIO_Pin_2|GPIO_Pin_3|GPIO_Pin_4|GPIO_Pin_5|GPIO_Pin_6|GPIO_Pin_7|GPIO_Pin_8|GPIO_Pin_9|GPIO_Pin_10|GPIO_Pin_11|GPIO_Pin_12|GPIO_Pin_13|GPIO_Pin_14|GPIO_Pin_15;
GPIO_InitStruct1.GPIO_Speed=GPIO_Speed_50MHz;
GPIO_Init(GPIOB,&GPIO_InitStruct1);
}
void pose(int date1,int date2,int date3,int date4,int date5,int date6,int date7,int date8,int date9)
{
GPIO_ResetBits(GPIOA,GPIO_Pin_3);//以下几个是先将ST-CP电平拉低
GPIO_ResetBits(GPIOA,GPIO_Pin_6);
GPIO_ResetBits(GPIOA,GPIO_Pin_9);
GPIO_ResetBits(GPIOA,GPIO_Pin_12);
GPIO_ResetBits(GPIOA,GPIO_Pin_15);
GPIO_ResetBits(GPIOB,GPIO_Pin_3);
GPIO_ResetBits(GPIOB,GPIO_Pin_6);
GPIO_ResetBits(GPIOB,GPIO_Pin_9);
GPIO_ResetBits(GPIOB,GPIO_Pin_12);
for(i2=0;i2<8;i2++)
{
if((date1&0x80)!=0)//date1数据
{
GPIO_SetBits(GPIOA,GPIO_Pin_2);
}
else
{
GPIO_ResetBits(GPIOA,GPIO_Pin_2);
}
if((date2&0x80)!=0)//date2数据
{
GPIO_SetBits(GPIOA,GPIO_Pin_5);
}
else
{
GPIO_ResetBits(GPIOA,GPIO_Pin_5);
}
if((date3&0x80)!=0)//date3数据
{
GPIO_SetBits(GPIOA,GPIO_Pin_8);
}
else
{
GPIO_ResetBits(GPIOA,GPIO_Pin_8);
}
if((date4&0x80)!=0)//date4数据
{
GPIO_SetBits(GPIOA,GPIO_Pin_11);
}
else
{
GPIO_ResetBits(GPIOA,GPIO_Pin_11);
}
if((date5&0x80)!=0)//date5数据
{
GPIO_SetBits(GPIOA,GPIO_Pin_14);
}
else
{
GPIO_ResetBits(GPIOA,GPIO_Pin_14);
}
if((date6&0x80)!=0)//date6数据
{
GPIO_SetBits(GPIOB,GPIO_Pin_2);
}
else
{
GPIO_ResetBits(GPIOB,GPIO_Pin_2);
}
if((date7&0x80)!=0)//date7数据
{
GPIO_SetBits(GPIOB,GPIO_Pin_5);
}
else
{
GPIO_ResetBits(GPIOB,GPIO_Pin_5);
}
if((date8&0x80)!=0)//date8数据
{
GPIO_SetBits(GPIOB,GPIO_Pin_8);
}
else
{
GPIO_ResetBits(GPIOB,GPIO_Pin_8);
}
if((date9&0x80)!=0)//date9数据
{
GPIO_SetBits(GPIOB,GPIO_Pin_11);
}
else
{
GPIO_ResetBits(GPIOB,GPIO_Pin_11);
}
GPIO_ResetBits(GPIOA,GPIO_Pin_1);
GPIO_ResetBits(GPIOA,GPIO_Pin_4);
GPIO_ResetBits(GPIOA,GPIO_Pin_7);
GPIO_ResetBits(GPIOA,GPIO_Pin_10);
GPIO_ResetBits(GPIOA,GPIO_Pin_13);
GPIO_ResetBits(GPIOB,GPIO_Pin_1);
GPIO_ResetBits(GPIOB,GPIO_Pin_4);
GPIO_ResetBits(GPIOB,GPIO_Pin_7);
GPIO_ResetBits(GPIOB,GPIO_Pin_10);
Delay(2);
GPIO_SetBits(GPIOA,GPIO_Pin_1);
GPIO_SetBits(GPIOA,GPIO_Pin_4);
GPIO_SetBits(GPIOA,GPIO_Pin_7);
GPIO_SetBits(GPIOA,GPIO_Pin_10);
GPIO_SetBits(GPIOA,GPIO_Pin_13);
GPIO_SetBits(GPIOB,GPIO_Pin_1);
GPIO_SetBits(GPIOB,GPIO_Pin_4);
GPIO_SetBits(GPIOB,GPIO_Pin_7);
GPIO_SetBits(GPIOB,GPIO_Pin_10);
date1=date1<<1;
date2=date2<<1;
date3=date3<<1;
date4=date4<<1;
date5=date5<<1;
date6=date6<<1;
date7=date7<<1;
date8=date8<<1;
date9=date9<<1;
}
GPIO_SetBits(GPIOA,GPIO_Pin_3);
GPIO_SetBits(GPIOA,GPIO_Pin_6);
GPIO_SetBits(GPIOA,GPIO_Pin_9);
GPIO_SetBits(GPIOA,GPIO_Pin_12);
GPIO_SetBits(GPIOA,GPIO_Pin_15);
GPIO_SetBits(GPIOB,GPIO_Pin_3);
GPIO_SetBits(GPIOB,GPIO_Pin_6);
GPIO_SetBits(GPIOB,GPIO_Pin_9);
GPIO_SetBits(GPIOB,GPIO_Pin_12);
}
传数据子函数.h文件
#ifndef __LED_H__
#define __LED_H__
void GPIO1_Init(void);
void pose(int date1,int date2,int date3,int date4,int date5,int date6,int date7,int date8,int date9);
#endif
显示图形的.c文件
#include "stm32f10x.h" // Device header
#include "Led.h"
#include "Delay.h"
int counter;
int counter1;
int counter2;
int counter3;
int a[]={0XFF,0X00,0XFF,0X01,0X80,0XFF,0X7E,0X02,0X40,0X7E,0X3C,0X04,0X20,0X3C,0X18,0X08,0X10,0X18,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X40,0x20,0x10,0x08,0x04,0x02,0x01,0X08,0X1C,0X3E,0X3E,0X14,0X08,0X1C,0X3E,0X3E,0X14,0X08,0X1C,0X3E,0X3E,0X14};//控制给阳极的数据
int b[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};//控0XE3制第一层哪个灯亮的数据
int c[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XFE,0XFE,0XFE,0XFE,0XFE,0XFD,0XFD,0XFD,0XFD,0XFD,0XFB,0XFB,0XFB,0XFB,0XFB};//控0XC1制第二层哪个灯亮的数据
int d[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XFF,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XFF,0XFE,0XFE,0XFE,0XFE,0XFD,0XFD,0XFD,0XFD,0XFD,0XFB,0XFB,0XFB,0XFB,0XFB};//控0XC9制第三层哪个灯亮的数据
int e[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XFF,0XFF,0XC1,0XC1,0XC1,0XC1,0XC1,0XC1,0XC1,0XC1,0XC1,0XC1,0XC1,0XC1,0XFF,0XFF,0XFE,0XFE,0XFE,0XFD,0XFD,0XFD,0XFD,0XFD,0XFB,0XFB,0XFB,0XFB,0XFB};//控0XEB制第四层哪个灯亮的数据
int f[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XFF,0XFF,0XFF,0XC9,0XC9,0XC9,0XC9,0XC9,0XC9,0XC9,0XC9,0XC9,0XC9,0XC9,0XFF,0XFF,0XFF,0XFE,0XFE,0XFD,0XFD,0XFD,0XFD,0XFD,0XFB,0XFB,0XFB,0XFB,0XFB};//控0XFF制第五层哪个灯亮的数据
int g[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XFF,0XFF,0XFF,0XFF,0XEB,0XEB,0XEB,0XEB,0XEB,0XEB,0XEB,0XEB,0XEB,0XEB,0XFF,0XFF,0XFF,0XFF,0XFE,0XFD,0XFD,0XFD,0XFD,0XFD,0XFB,0XFB,0XFB,0XFB,0XFB};//控0XFF制第六层哪个灯亮的数据
int h[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};//控制第七层哪个灯亮的数据
int i[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};//控制第八层哪个灯亮的数据
int j[]={0X08,0X1C,0X3E,0X3E,0X14,0X08,0X1C,0X3E,0X3E,0X14,0X08,0X1C,0X3E,0X3E,0X14,0X08,0X1C,0X3E,0X3E,0X14,0X08,0X1C,0X3E,0X3E,0X14};
int k[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
int l[]={0XF7,0XF7,0XF7,0XF7,0XF7,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XBF,0XBF,0XBF,0XBF,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F};
int m[]={0XF7,0XF7,0XF7,0XF7,0XF7,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XBF,0XBF,0XBF,0XBF,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F};
int n[]={0XF7,0XF7,0XF7,0XF7,0XF7,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XBF,0XBF,0XBF,0XBF,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F};
int o[]={0XF7,0XF7,0XF7,0XF7,0XF7,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XBF,0XBF,0XBF,0XBF,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F};
int p[]={0XF7,0XF7,0XF7,0XF7,0XF7,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XBF,0XBF,0XBF,0XBF,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F};
int q[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
int r[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
int a1[]={0X40,0X20,0X10,0X08,0X04,0X40,0X20,0X10,0X08,0X04,0X40,0X20,0X10,0X08,0X04,0X40,0X20,0X10,0X08,0X04,0X40,0X20,0X10,0X08,0X04,0X40,0X20,0X10,0X08,0X04,0X40,0X20,0X10,0X08,0X04,0X40,0X20,0X10,0X08,0X04};
int b1[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XE3,0XC1,0XC1,0XEB};
int c1[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XE3,0XC1,0XC1,0XEB,0XFF,0XFF,0XFF,0XFF,0XFF};
int d1[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XE3,0XC1,0XC1,0XEB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
int e1[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XE3,0XC1,0XC1,0XEB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
int f1[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XE3,0XC1,0XC1,0XEB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
int g1[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XE3,0XC1,0XC1,0XEB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
int h1[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XE3,0XC1,0XC1,0XEB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
int i1[]={0XF7,0XE3,0XC1,0XC1,0XEB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
int j1[]={0x80,0X80,0x40,0X40,0x20,0X20,0x10,0X10,0x08,0X08,0x04,0X04,0x02,0X02,0x01,0X01,0x81,0x81,0x81,0x81,0x81,0x81,0x81,0x81,0X42,0X42,0X42,0X42,0X42,0X42,0X42,0X42,0X24,0X24,0X24,0X24,0X24,0X24,0X24,0X24,0X18,0X18,0X18,0X18,0X18,0X18,0X18,0X18};
int k1[]={0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x7E,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XBD,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XDB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE7};
int l1[]={0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X7E,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XBD,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XDB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE7,0XFF};
int m1[]={0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0XFF,0XFF,0XFF,0XFF,0X7E,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XBD,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XDB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE7,0XFF,0XFF};
int n1[]={0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0XFF,0XFF,0XFF,0XFF,0X7E,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XBD,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XDB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE7,0XFF,0XFF,0XFF};
int o1[]={0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0XFF,0XFF,0X7E,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XBD,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XDB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE7,0XFF,0XFF,0XFF,0XFF};
int p1[]={0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0XFF,0XFF,0X7E,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XBD,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XDB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE7,0XFF,0XFF,0XFF,0XFF,0XFF};
int q1[]={0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X7E,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XBD,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XDB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE7,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
int r1[]={0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X7E,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XBD,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XDB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE7,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
/*
int a3[]={};
int b3[]={};
int c3[]={};
int d3[]={};
int e3[]={};
int f3[]={};
int g3[]={};
int h3[]={};
int i3[]={};
*/
//第四列形成流水瀑布 1~16为雨滴向下并排落下
//17~24 每一层的四个角从上到下落下
//0X18为结束
void liangmie()
{
for(counter=0;counter<=10;counter++)//进行11次亮灭操作，可以自己设计次数
{
pose(a[0],b[0],c[0],d[0],e[0],f[0],g[0],h[0],i[0]);
Delay(5000);
pose(a[1],b[1],c[1],d[1],e[1],f[1],g[1],h[1],i[1]);
Delay(5000);
}
}
void outtoin()
{
for(counter2=0;counter2<=20;counter2++)//进行最外层棱的显示
{
for(counter1=0;counter1<=3;counter1++)
{
pose(a[2+counter1],b[2+counter1],c[2+counter1],d[2+counter1],e[2+counter1],f[2+counter1],g[2+counter1],h[2+counter1],i[2+counter1]);
}
}
for(counter2=0;counter2<=20;counter2++)//向内一层棱的显示
{
for(counter1=0;counter1<=3;counter1++)
{
pose(a[6+counter1],b[6+counter1],c[6+counter1],d[6+counter1],e[6+counter1],f[6+counter1],g[6+counter1],h[6+counter1],i[6+counter1]);
}
}
for(counter2=0;counter2<=20;counter2++)
{
for(counter1=0;counter1<=3;counter1++)
{
pose(a[10+counter1],b[10+counter1],c[10+counter1],d[10+counter1],e[10+counter1],f[10+counter1],g[10+counter1],h[10+counter1],i[10+counter1]);
}
}
for(counter2=0;counter2<=20;counter2++)//到最里层显示结束
{
for(counter1=0;counter1<=3;counter1++)
{
pose(a[14+counter1],b[14+counter1],c[14+counter1],d[14+counter1],e[14+counter1],f[14+counter1],g[14+counter1],h[14+counter1],i[14+counter1]);
}
}
}
void intoout()
{
for(counter2=0;counter2<=20;counter2++)//到最里层显示开始
{
for(counter1=0;counter1<=3;counter1++)
{
pose(a[14+counter1],b[14+counter1],c[14+counter1],d[14+counter1],e[14+counter1],f[14+counter1],g[14+counter1],h[14+counter1],i[14+counter1]);
}
}
for(counter2=0;counter2<=20;counter2++)
{
for(counter1=0;counter1<=3;counter1++)
{
pose(a[10+counter1],b[10+counter1],c[10+counter1],d[10+counter1],e[10+counter1],f[10+counter1],g[10+counter1],h[10+counter1],i[10+counter1]);
}
}
for(counter2=0;counter2<=20;counter2++)//向内一层棱的显示
{
for(counter1=0;counter1<=3;counter1++)
{
pose(a[6+counter1],b[6+counter1],c[6+counter1],d[6+counter1],e[6+counter1],f[6+counter1],g[6+counter1],h[6+counter1],i[6+counter1]);
}
}
for(counter2=0;counter2<=20;counter2++)//进行最外层棱的显示
{
for(counter1=0;counter1<=3;counter1++)
{
pose(a[2+counter1],b[2+counter1],c[2+counter1],d[2+counter1],e[2+counter1],f[2+counter1],g[2+counter1],h[2+counter1],i[2+counter1]);
}
}
}
void heart()
{
for(counter=0;counter<=6;counter++)
{
for(counter1=0;counter1<=5;counter1++)//从下到上一点点组成心形
{
pose(a[18+counter1],b[18+counter1],c[18+counter1],d[18+counter1],e[18+counter1],f[18+counter1],g[18+counter1],h[18+counter1],i[18+counter1]);
Delay(3500);
}
}
for(counter=0;counter<=6;counter++)
{
for(counter1=5;counter1>=0;counter1--)//从上到下一点点组成心形
{
pose(a[18+counter1],b[18+counter1],c[18+counter1],d[18+counter1],e[18+counter1],f[18+counter1],g[18+counter1],h[18+counter1],i[18+counter1]);
Delay(3500);
}
}
for(counter=0;counter<=6;counter++)//心形由前到后闪烁
{
for(counter1=0;counter1<=8;counter1++)
{
pose(a[23+counter1],b[23+counter1],c[23+counter1],d[23+counter1],e[23+counter1],f[23+counter1],g[23+counter1],h[23+counter1],i[23+counter1]);
Delay(2500);
}
}
for(counter=0;counter<=6;counter++)//最左面灯一点点亮起来
{
for(counter1=0;counter1<=4;counter1++)
{
pose(a[32+counter1],b[32+counter1],c[32+counter1],d[32+counter1],e[32+counter1],f[32+counter1],g[32+counter1],h[32+counter1],i[32+counter1]);
Delay(2500);
}
}
for(counter=0;counter<=5;counter++)//开始从左边一列一列亮起来
{
for(counter1=0;counter1<=4;counter1++)
{
pose(a[37+counter1],b[37+counter1],c[37+counter1],d[37+counter1],e[37+counter1],f[37+counter1],g[37+counter1],h[37+counter1],i[37+counter1]);
}
Delay(500);
for(counter1=0;counter1<=5;counter1++)
{
pose(a[42+counter1],b[42+counter1],c[42+counter1],d[42+counter1],e[42+counter1],f[42+counter1],g[42+counter1],h[42+counter1],i[42+counter1]);
}
Delay(500);
for(counter1=0;counter1<=5;counter1++)
{
pose(a[48+counter1],b[48+counter1],c[48+counter1],d[48+counter1],e[48+counter1],f[48+counter1],g[48+counter1],h[48+counter1],i[48+counter1]);
}
Delay(500);
for(counter1=0;counter1<=5;counter1++)
{
pose(a[54+counter1],b[54+counter1],c[54+counter1],d[54+counter1],e[54+counter1],f[54+counter1],g[54+counter1],h[54+counter1],i[54+counter1]);
}
Delay(500);
for(counter1=0;counter1<=5;counter1++)
{
pose(a[60+counter1],b[60+counter1],c[60+counter1],d[60+counter1],e[60+counter1],f[60+counter1],g[60+counter1],h[60+counter1],i[60+counter1]);
}
Delay(500);
for(counter1=0;counter1<=5;counter1++)
{
pose(a[66+counter1],b[66+counter1],c[66+counter1],d[66+counter1],e[66+counter1],f[66+counter1],g[66+counter1],h[66+counter1],i[66+counter1]);
}
Delay(500);
}
}
显示图形的.h文件
#ifndef __xianshi_H__
#define __xianshi_H__
void liangmie(void);
void outtoin(void);
void intoout(void);
void heart(void);
#endif到此我的分享就结束了，这几天在实验室在焊接这个光立方，挤了很多时间才写完这个，希望大家能批评指正！

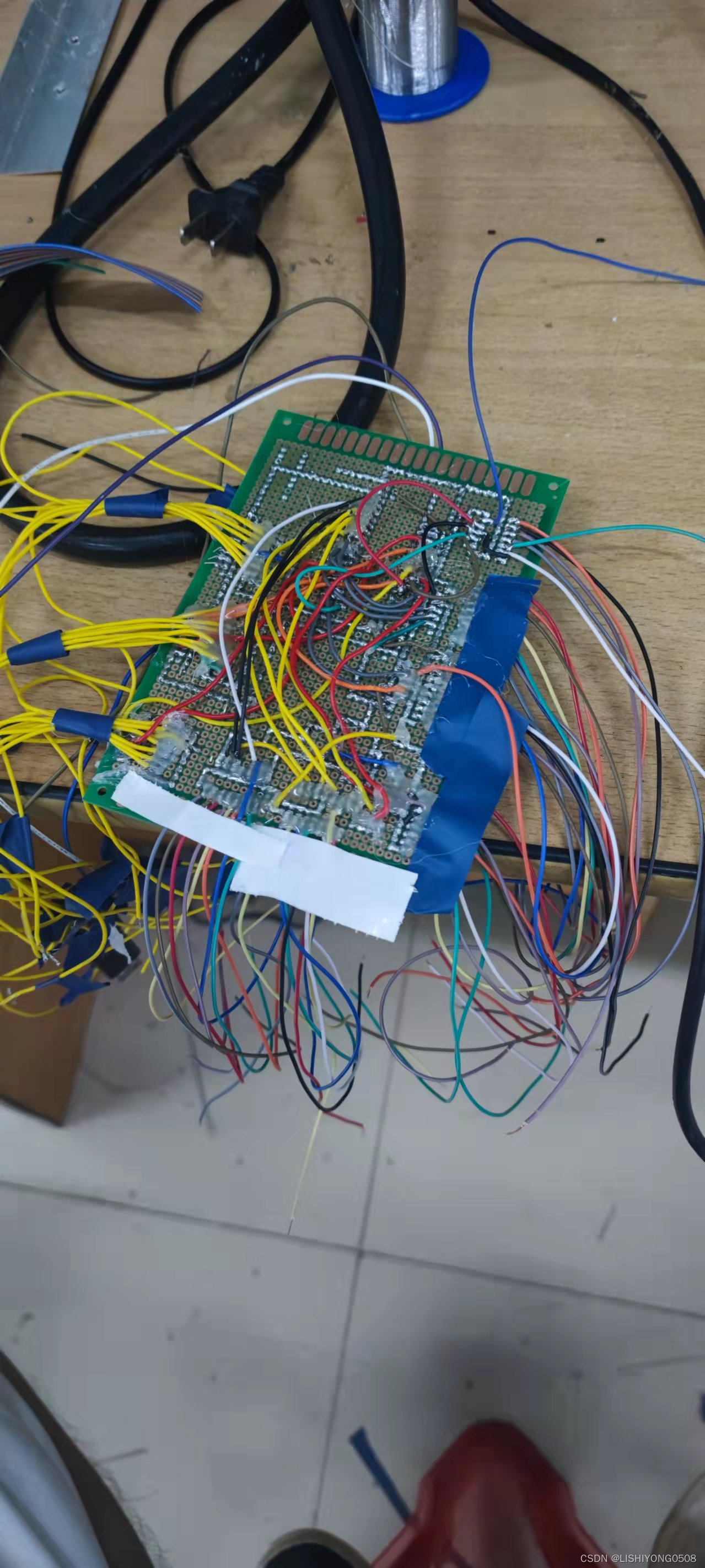

发一个我在实验室的飞线照片吧，挺好玩的~

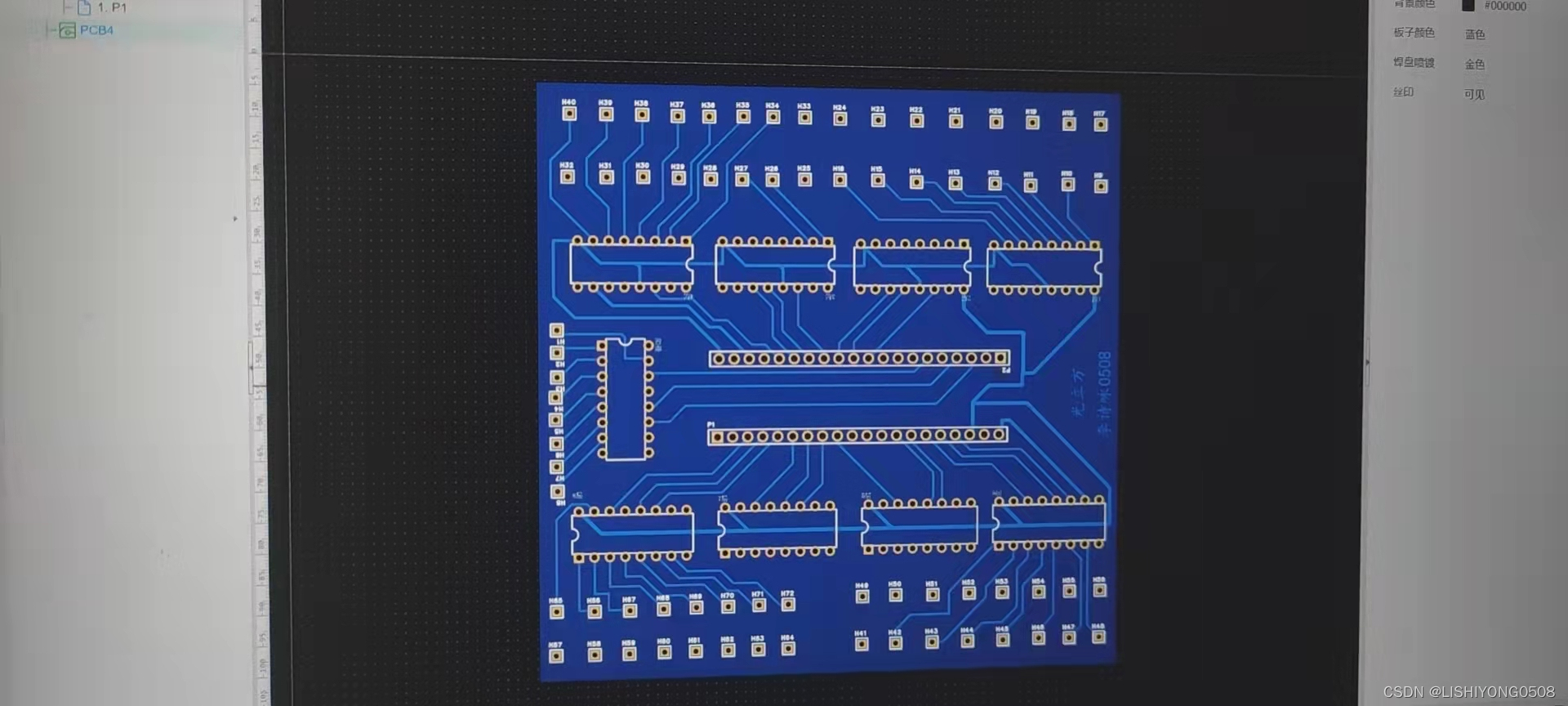

这个由于后面飞线有点多，使用时间长了信号不稳定，后面我是自己画了个pcb板，自己的话建议还是打个板子使用。
Unity自动旋转动画1.开门需要门把手先动,门再动2.关门需要门先动,门把手再动3.中途播放过程中不可以再次进行操作觉得太复杂?查看我的文章开关门简易进阶版效果:如果这个门可以直接打开的话,就不需要放置"门把手"如果门把手还有钥匙需要旋转,那就可以把钥匙放在门把手的"门把手",理论上是可以无限套娃的可调整参数有:角度,反向,轴向,速度运行时点击Test进行测试自己写的代码比较垃圾,命名与结构比较拉,高手轻点喷,新手有类似的需求可以拿去做参考上代码usingSystem.Collections;usingSystem.Collections.Generic;usingUnityEngine;u
在VMware16.2.4安装Ubuntu一、安装VMware1.打开VMwareWorkstationPro官网，点击即可进入。2.进入后向下滑动找到Workstation16ProforWindows，点击立即下载。3.下载完成，文件大小615MB，如下图：4.鼠标右击，以管理员身份运行。5.点击下一步6.勾选条款，点击下一步7.先勾选，再点击下一步8.去掉勾选，点击下一步9.点击下一步10.点击安装11.点击许可证12.在百度上搜索VM16许可证，复制填入，然后点击输入即可，亲测有效。13.点击完成14.重启系统，点击是15.双击VMwareWorkstationPro图标，进入虚拟机主
动漫制作技巧是很多新人想了解的问题，今天小编就来解答与大家分享一下动漫制作流程，为了帮助有兴趣的同学理解，大多数人会选择动漫培训机构，那么今天小编就带大家来看看动漫制作要掌握哪些技巧？一、动漫作品首先完成草图设计和原型制作。设计草图要有目的、有对象、有步骤、要形象、要简单、符合实际。设计图要一致性，以保证制作的顺利进行。二、原型制作是根据设计图纸和制作材料，可以是手绘也可以是3d软件创建。在此步骤中，要注意的问题是色彩和平面布局。三、动漫制作制作完成后，加工成型。完成不同的表现形式后，就要对设计稿进行加工处理，使加工的难易度降低，并得到一些基本准确的概念，以便于后续的大样、准确的尺寸制定。四、
1．问题描述使用Python的turtle（海龟绘图）模块提供的函数绘制直线。2．问题分析一幅复杂的图形通常都可以由点、直线、三角形、矩形、平行四边形、圆、椭圆和圆弧等基本图形组成。其中的三角形、矩形、平行四边形又可以由直线组成，而直线又是由两个点确定的。我们使用Python的turtle模块所提供的函数来绘制直线。在使用之前我们先介绍一下turtle模块的相关知识点。turtle模块提供面向对象和面向过程两种形式的海龟绘图基本组件。面向对象的接口类如下：1）TurtleScreen类：定义图形窗口作为绘图海龟的运动场。它的构造器需要一个tkinter.Canvas或ScrolledCanva
目录H2数据库入门以及实际开发时的使用1.H2数据库的初识1.1H2数据库介绍1.2为什么要使用嵌入式数据库？1.3嵌入式数据库对比1.3.1性能对比1.4技术选型思考2.H2数据库实战2.1H2数据库下载搭建以及部署2.1.1H2数据库的下载2.1.2数据库启动2.1.2.1windows系统可以在bin目录下执行h2.bat2.1.2.2同理可以通过cmd直接使用命令进行启动：2.1.2.3启动后控制台页面：2.1.3spring整合H2数据库2.1.3.1引入依赖文件2.1.4数据库通过file模式实际保存数据的位置2.2H2数据库操作2.2.1Mysql兼容模式2.2.2Mysql模式
我有一个关于多维数组的初学者ruby问题。我想按年份和月份对条目进行排序。所以我想创建一个包含年->月->月条目的多维数组所以数组应该是这样的:2009->08->Entry1->Entry209->Entry32007->10->Entry5现在我有:@years=[]@entries.eachdo|entry|timeobj=Time.parse(entry.created_at.to_s)year=timeobj.strftime("%Y").to_imonth=timeobj.strftime("%m").to_itmparr=[]tmparrentry}@years.pu
问题总结我想尝试使用Ruby来完成我在Python中所做的事情。在Python中它有r"""syntaxtosupportrawstrings，这很好，因为它允许将原始字符串与代码内联，并以更自然的方式连接它们，而无需特殊缩进。在Ruby中，当使用原始字符串时，必须使用其次是EOT在单独的行中，这会破坏代码布局。你可能会问，为什么不使用Ruby的%q{}？嗯，因为%q{}与Python的r"""相比有局限性因为它不会转义多个\\\并且只处理单个\.我正在动态生成Latex代码并写入一个文件，该文件稍后用pdflatex编译。Latex代码包含类似\\\的内容在许多地方。如果我使用Rub
我正在使用Ruby1.8。似乎downcase不会改变非拉丁字符。例如:"Δ".downcase返回“Δ”我知道在Ruby1.9.1及更高版本中，我可以使用UnicodeUtils(fromhere)。我试过了，它工作正常。返回上一个示例的"δ"。是否有适用于1.8Ruby的等效(或任何)解决方案？ 最佳答案 nash@nash:~$ruby-vruby1.8.7(2011-02-18patchlevel334)[i686-linux]gem安装unicode(https://rubygems.org/gems/unicode)re
我正在使用Ruby制作一个命令行工具。它将在屏幕上打印大量文本。目前，我正在使用shell管道(may_app|more)来执行此操作。但我认为最好有一个默认的寻呼机。就像你在执行gitlog时看到的一样。可以使用git--nopagerlog禁用寻呼机。我已经完成了大量的谷歌工作并找到了一颗gem:hirb,但似乎有点矫枉过正。经过多次尝试，我目前正在使用shellwrapper来这样做:#!/bin/bash#xray.rbisthecorescript#doingthemainlogicandwill#outputmanyrowsoftexton#screenXRAY=$HOME
我想知道如何在shell中创建“全屏”窗口的外观，如在vim、emacs等中。是否可以在Ruby中以编程方式执行此操作？这对平台的依赖程度如何？编辑:我不是在寻找如何让我的shell进入全屏模式。我正在寻找一种方法来隐藏以前输入的命令并用应用程序“填充”shell屏幕。它适用于安装程序。 最佳答案 您可能正在寻找的是ncurses或S-Lang支持提供你的全TUI经验。Ruby的gem环境提供了几个可能值得探索的gem:$gemlist--remote|grep-icursescursesx(003)ffi-ncurses(0.4.
