Canal-实时同步MySQL与ES数据

Canal的工作原理就是把自己伪装成MySQL Slave，模拟MySQL Slave的交互协议向MySQL Mater发送 Dump协议，MySQL Mater收到Canal发送过来的Dump请求，开始推送Binlog给Canal，然后Canal解析Binlog，再发送到存储目的地，比如MySQL，Kafka，Elastic Search等等。

安装步骤

1. MySQL安装

1.1 Docker安装MySQL

mkdir -p mysql/conf
docker run -p 3306:3306 --name mysql -v ${pwd}/mysql/conf:/etc/mysql/conf.d -e MYSQL_ROOT_PASSWORD=root -d mysql
# docker cp mysql:/etc/mysql/my.cnf ${pwd}/mysql/conf

1.2 配置MySQL

cat > ${pwd}/mysql/conf/my.cnf << EOF
[mysqld]
# 打开Binlog
log-bin         = mysql-bin
# 选择ROW(行)模式
binlog-format   = ROW
# MySQL Replication定义
server_id       = 1001
EOF
docker restart mysql

注意：service_id范围为1到$2^{32}-1$

1.3 验证Binlog是否开启

[root@192 ~]# docker exec -it mysql bash
root@10eaf43f300e:/# mysql -uroot -proot
mysql> show variables like 'log_bin';
+---------------+-------+
| Variable_name | Value |
+---------------+-------+
| log_bin       | ON    |
+---------------+-------+
1 row in set (0.00 sec)
mysql> show master status;
+------------------+----------+--------------+------------------+-------------------+
| File             | Position | Binlog_Do_DB | Binlog_Ignore_DB | Executed_Gtid_Set |
+------------------+----------+--------------+------------------+-------------------+
| mysql-bin.000001 |      156 |              |                  |                   |
+------------------+----------+--------------+------------------+-------------------+
1 row in set (0.00 sec)

1.4 创建用户

# 创建用户 用户名：canal 密码：Canal@123456
CREATE USER 'canal'@'%' IDENTIFIED BY 'canal';
# 授权 *.*表示所有库
GRANT SELECT, REPLICATION SLAVE, REPLICATION CLIENT ON *.* TO 'canal'@'%';
# 刷新并应用
FLUSH PRIVILEGES;

create database canal;
use canal;
create table users (
	id int auto_increment,
	name varchar(64),
	primary key(id)
);
insert into users(name) values('zhangsan'),('lisi');

2. ES安装

docker pull elasticsearch:7.17.1
mkdir -p /root/elasticsearch/config
mkdir -p /root/elasticsearch/data
chmod -R 777 /root/elasticsearch
echo "http.host: 0.0.0.0
http.cors.enabled: true
http.cors.allow-origin: \"*\"" > /root/elasticsearch/config/elasticsearch.yml
docker run --name elasticsearch -p 9200:9200  -p 9300:9300 \
 -e "discovery.type=single-node" \
 -e ES_JAVA_OPTS="-Xms84m -Xmx512m" \
 -v /root/elasticsearch/config/elasticsearch.yml:/usr/share/elasticsearch/config/elasticsearch.yml \
 -v /root/elasticsearch/data:/usr/share/elasticsearch/data \
 -v /root/elasticsearch/plugins:/usr/share/elasticsearch/plugins \
 --restart=always -d elasticsearch:7.17.1

ES 操作

### 创建索引
PUT http://192.168.0.131:9200/users_index
Content-Type: application/json

{
  "mappings": {
    "properties": {
      "id": {
        "type": "keyword"
      },
      "name": {
        "type": "text"
      }
    }
  }
}

### 插入数据
POST http://192.168.0.131:9200/users_index/_doc
Content-Type: application/json

{
  "id": 1,
  "name": "zhangsan"
}

### 查询数据
GET http://192.168.0.131:9200/users_index/_search
Content-Type: application/json

{
    "query": {
        "constant_score": {
            "filter": {
                "term": { "id": "1" }
            }
        }
    }
}

3. ES-Head

docker run --restart=always --name elasticsearch-head -di -p 9100:9100 mobz/elasticsearch-head:5-alpine
docker exec -it -u root elasticsearch-head sh

vi _site/vendor.js

# 6886行
contentType: "application/x-www-form-urlencoded",
# 改成
contentType: "application/json;charset=UTF-8",
# 7573行
var inspectData = s.contentType === "application/x-www-form-urlencoded" &&
# 改成
var inspectData = s.contentType === "application/json;charset=UTF-8" &&

docker restart elasticsearch-head

4. Kibana

docker pull kibana:7.17.1
mkdir -p /root/kibana    # 创建挂载配置目录
chmod 777 /root/kibana   # 赋值读写执行权限
echo "server.host: 0.0.0.0
elasticsearch.hosts: http://192.168.0.131:9200" > /root/kibana/kibana.yml
docker run --name kibana --restart=always -v /root/kibana/kibana.yml:/usr/share/kibana/config/kibana.yml -p 5601:5601 -d kibana:7.17.1

5. Canal安装

5.1 安装Canal Server

# 创建Canal配置文件位置
mkdir -p /root/canal/conf
# 启动Canal-Server
docker run --name canal-server -d canal/canal-server
# 复制容器中的配置文件到本地
docker cp canal-server:/home/admin/canal-server/conf/canal.properties /root/canal/conf
docker cp canal-server:/home/admin/canal-server/conf/example/instance.properties /root/canal/conf
# 删除Canal-Server容器
docker stop canal-server && docker rm canal-server

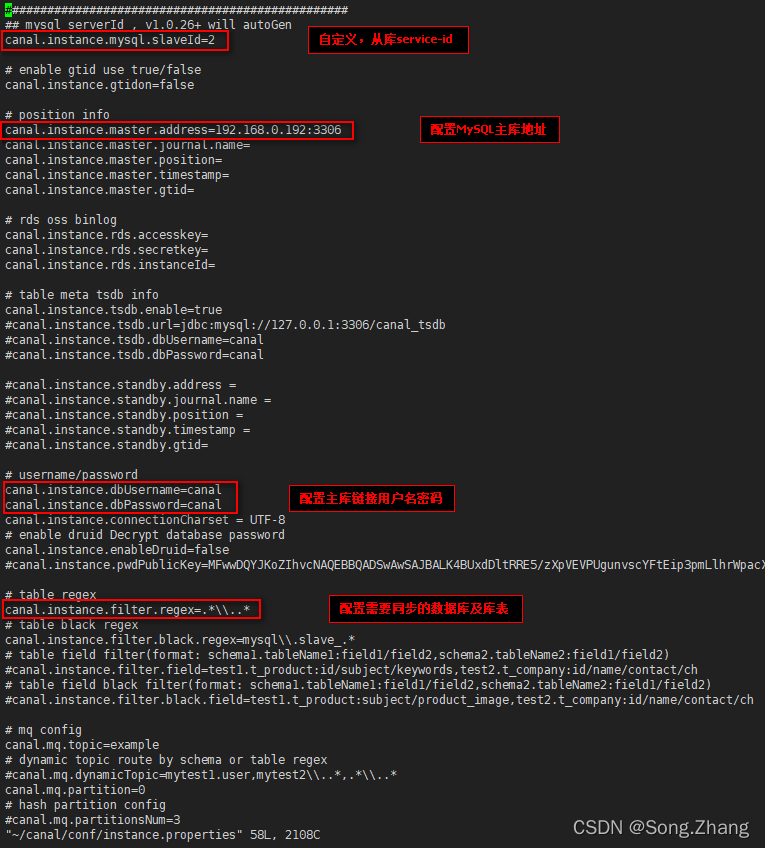

修改配置

vi /root/canal/conf/instance.properties

# 重新启动Canal-Server容器
docker run --name canal-server --restart=always -p 11111:11111 \
-v /root/canal/conf/instance.properties:/home/admin/canal-server/conf/example/instance.properties \
-v /root/canal/conf/canal.properties:/home/admin/canal-server/conf/canal.properties \
-d canal/canal-server

5.2 安装Canal Adapter

mkdir -p /root/canal/adapter/conf/es7
cat > /root/canal/adapter/conf/application.yml << EOF
server:
  port: 8081
spring:
  jackson:
    date-format: yyyy-MM-dd HH:mm:ss
    time-zone: GMT+8
    default-property-inclusion: non_null
canal.conf:
  mode: tcp
  flatMessage: true
  zookeeperHosts:
  syncBatchSize: 1000
  retries: 0
  timeout:
  accessKey:
  secretKey:
  consumerProperties:
    # canal tcp consumer
    canal.tcp.server.host: 192.168.0.131:11111
    canal.tcp.batch.size: 500
    canal.tcp.username:
    canal.tcp.password:
  srcDataSources:
    defaultDS:
      url: jdbc:mysql://192.168.0.131:3306/canal?useUnicode=true
      username: canal
      password: canal
  canalAdapters:
  - instance: example # canal instance Name or mq topic name
    groups:
    - groupId: g1
      outerAdapters:
      - name: logger
      - name: es7 # 该版本发现只能是es7/es6
        hosts: 192.168.0.131:9200 # 127.0.0.1:9300 for rest transport
        properties:
          mode: rest # or transport
          cluster.name: elasticsearch
EOF

注：cluster.name通过访问http://192.168.0.131:9200获取

cat > /root/canal/adapter/conf/es7/users_index.yml << EOF
dataSourceKey: defaultDS
destination: example
groupId: g1
esMapping:
  _index: users_index
  _id: _id
  _type: _doc
  upsert: true
  #  pk: id
  sql: "SELECT a.id as _id, a.name as name from users a "
  #  objFields:
  #    _labels: array:;
  # etlCondition: "where a.>={}"
  commitBatch: 3000
EOF
docker run --name canal-adapter --restart=always -p 8081:8081 -v /root/canal/adapter/conf:/opt/canal-adapter/conf  -d slpcat/canal-adapter:v1.1.5
